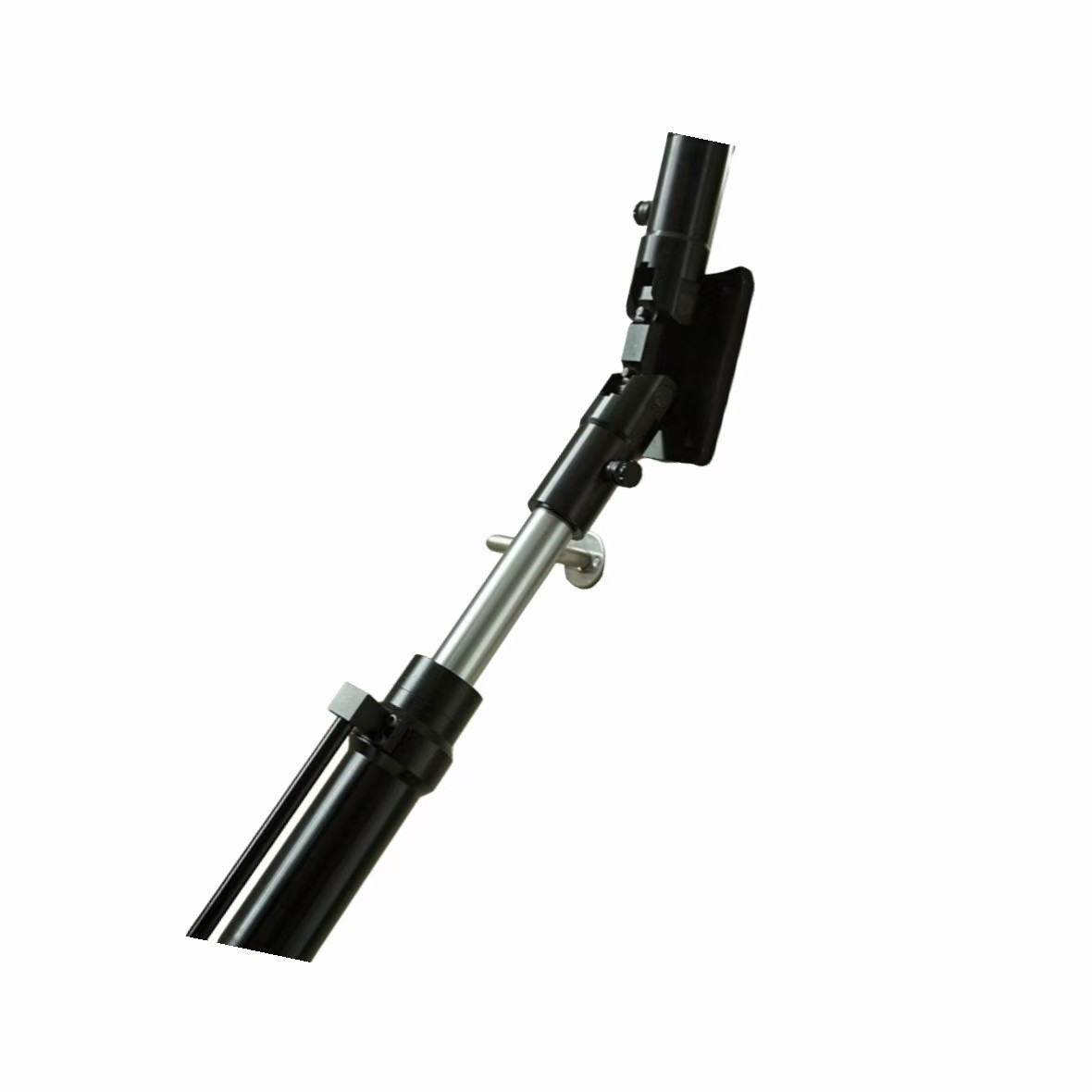

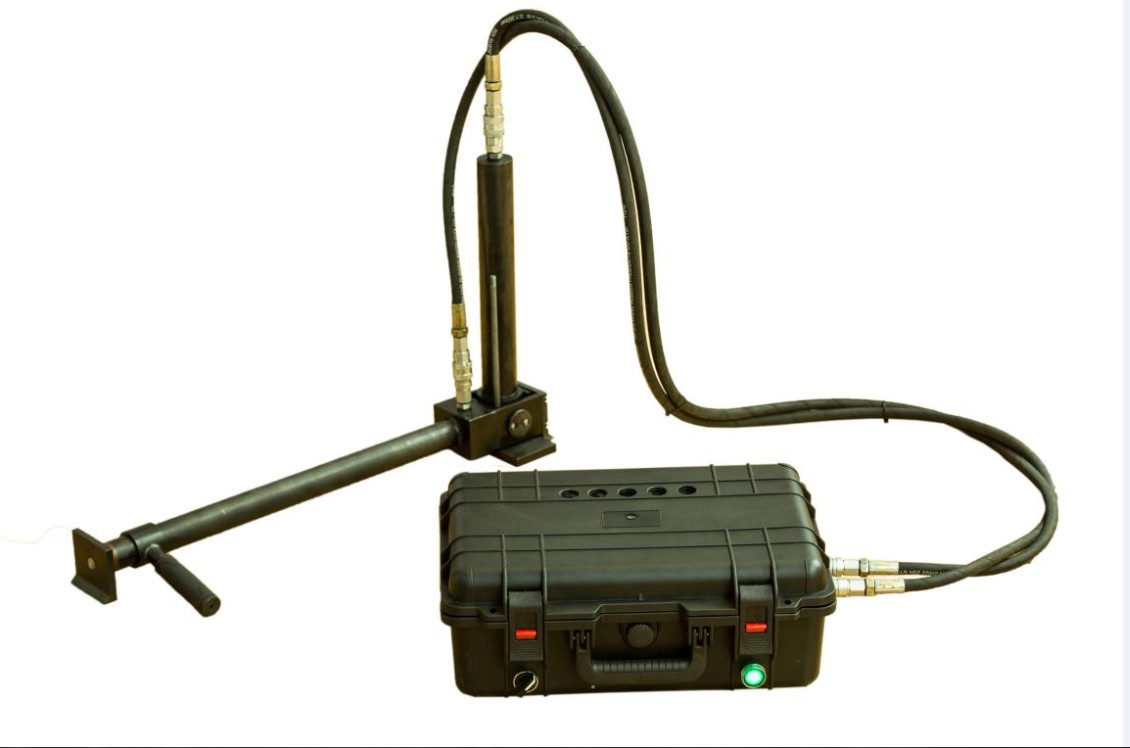

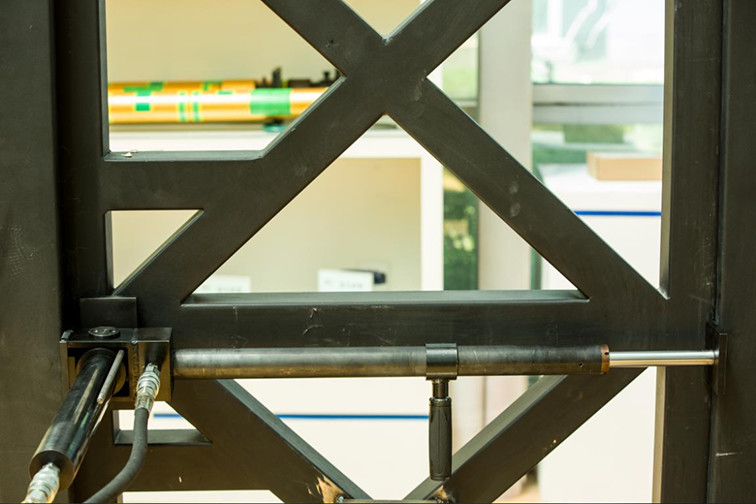

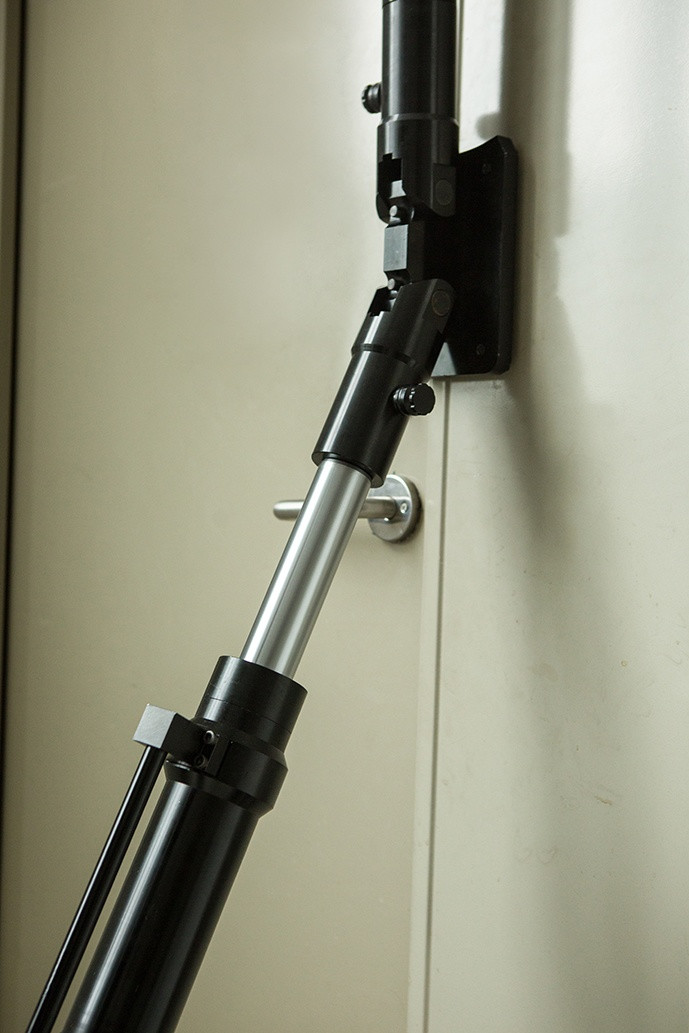

Electric hydraulic door opener DB6

Product Description

Overview:

The DB6 heavy-duty electric hydraulic door opener is made of high-strength composite materials, which gives it the characteristics of high pressure resistance, high temperature resistance, and cold resistance, enabling it to operate normally in various complex environments. The body made of high-strength composite materials makes it lightweight overall, and the exquisite structural design ensures ideal installation speed and ease of use. The fast connectors between the components of the DB6 electric hydraulic door opener utilize the 30° horizontal hydraulic support force against the ground, and the base feet adopt the ground-piercing grounding method, perfectly combining friction and thrust. In terms of the hydraulic pump, we have used a rechargeable electric hydraulic pump and adopted a two-way double-acting method, allowing our DB6 electric hydraulic door opener to operate at any location without an external power supply. The two-way double-acting working mode enables the hydraulic cylinder to have the characteristics of both free ejection and free retraction. Ultimately, this makes our operation more user-friendly and the operation simpler.

Features:

Speed: All the actions including installation, operation and door opening can be completed within 20 seconds;

Silence: With the battery unit, the maximum noise at a distance of 5 meters can be controlled within 50 decibels;
Efficiency: It can be positioned simply by supporting on the door and will not block the operator's way after opening the door;
Safety: It can be operated remotely from a distance for the door opening system;
Power: Tested to be able to open a security door with 8 locks at the same time;
Multifunctionality: It can open various iron doors, multi-functional doors, security doors and double-page doors, etc.;
Automation: The automatic battery unit enables it to open at least 20 various security doors within 4 hours;

Maximum charging time: 4 hours
Pump body weight: 18kg
Maximum impact force: 70KN
Hydraulic cylinder extension rod: 150mm, 300mm, 450mm
Door-breaking device unfolding size: 2300mm
Door-breaking device closing size: 1300mm
Door-breaking device weight: ≤ 23kg
