Lt-Eqr5 Disinfection Fire Fighting Robot Anti Epidemic 48v Output Voltage
Contact Person : Tina Yu
Phone Number : 86-10-57621296
WhatsApp : +8613683015302
|Minimum Order Quantity :||1set||Price :||USD37500/set|
|Packaging Details :||Aluminium case||Delivery Time :||60days|
|Payment Terms :||T/T||Supply Ability :||10sets/month|
|Place of Origin:||China||Brand Name:||Topsky|
|Working Pressure:||1.0-1.4mpa||Chassis Clearance:||170mm|
|Obstacle Climbing:||220mm||Control Distance:||500m|
fire department equipment,
fire rescue equipment

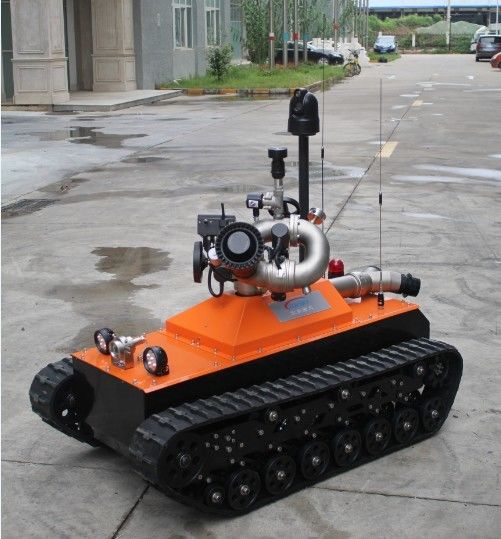

As one of the special robots, the RXR-M80D-1 fire extinguishing robot uses the lithium battery power as the power supply, and uses the wireless remote control to remotely control the fire extinguishing robot. Can be used in the large-scale petroleum chemical enterprises, such as subway tunnel, increasing oil gas, gas explosion, tunnel, subway collapse disaster prone to leakage, fire fighting robot plays an important role in rescue, special equipment in hazardous fire smoke or fire rescue scene of the main alternative to firefighters.
1. supporting area is large, the track grounding ratio of 150mm reaches 70%, suitable for soft, muddy and other complex environment operation, subsidence is small, rolling resistance is small, cross-country motor performance is good.
2. the turning radius is very small, which can realize in situ steering.
3. track supporting surface has grouser, which is not easy to slip, has good traction and adhesion performance, and is favorable for exert Greater traction.
4. chassis height more than 170mm, with super climbing, obstacle surmounting ability.
5. car body shell using Q235 steel plate, durable, overall protection performance is good.
6. remote control water canon pitch, spray, large flow, high range, a variety of injection mode, jet/mist mode witching.
7. HD wireless graphic transmission system for remote real time video surveillance.
Adopting advanced wireless communication technology, the communication distance is far, and the anti-interference is strong.
Robot body parameters:
1. Dimensions: 1550 * 850* 1000mm
2, weight: 370kg
3. Ground clearance: 170mm
4, maximum speed: 0-1.6m/s, remote control stepless speed change
5, climbing ability: 30°
6. Height of obstacle crossing: 220mm
7, by the power of 4000W
8, voltage: 48V
9, working time: 5h
10. Turning radius: spinning in place
11, rated torque: 167NM
12, protection level: IP54
13, by the self protecting device: the body from the spray cooling system.
13, remote control distance: 500M.
1, maximum pressure (MPa): 1.4
2, flow (L/s): 80
3, range: 80m.
4. Water cannon angle: pitch angle: 30~90°; rotation angle: 135 ° to the left, 135°to the right.
5. Water supply interface: 80 interface *2
