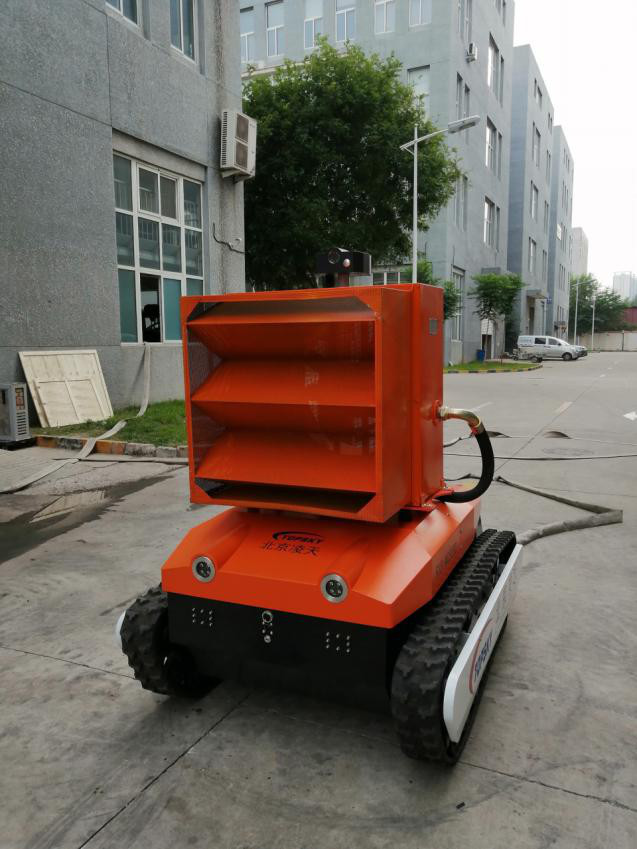

RXR-MC4BD fire-fighting high-prevention foam fire-fighting reconnaissance robot

RXR-MC4BD fire-fighting high-prevention foam fire-fighting reconnaissance robot is a kind of special robot. It uses lithium battery power as the power source and uses wireless remote control to remotely control the fire-fighting robot.

RXR-MC4BD high-foam foam fire-fighting reconnaissance robot body is equipped with a high-multiple foam cannon, which is used to quickly connect the fire truck's water source with a fire hose to help firefighters approach the fire source for long-range high-pressure foam spraying.

The RXR-MC4BD fire-fighting high-precision foam fire-fighting reconnaissance robot is connected to the fire truck with a fire hose. The fire spray foam is controlled by the fire truck to control the opening and closing of the water source.

Overall performance parameters
2.1 Application: Fire extinguishing, reconnaissance, petrochemical and other flammable and explosive environments

2.2 ★ Traction: ≥5000N

2.3 ★ Dragging distance: ≥100m (drag two DN80 full water hoses)

2.4 Walking speed: 0 ～ 1.38m / s, remote control stepless speed change

2.5 ★ Climbing ability: 80%

2.6 Continuous walking time: ≥2.5h

2.7 Endurance: ≥10h

2.8 Remote control distance: 1km

2.9 Control mode: wireless remote control

2.10 ★ Explosion-proof type: Exd [ib] Ⅱ B T4 Gb

2.11 Obstacle crossing ability: 300mm obstacle; can adapt to grassland, sand, snow, gravel, beach

2.12 Machine weight: ≤725Kg

2.13 ★ Wade depth: 500mm

2.14 ★ Straight deviation: <2%

Third, the chassis parameters
3.1 Dimensions: 2200mm × 1450mm × 1850mm (including antenna and water collector)

3.2 Walking mechanism: all-terrain high-strength track, internal metal skeleton

3.3 Turning radius: turning in place

3.4 Power: 3000W * 2

3.5 Chassis height: 180mm from the ground at the lowest point

3.6 Roll stability angle: ≥45 °

Fourth, the fire extinguishing system parameters
4.1 Type of fire extinguishing agent: high expansion foam

4.2 Working pressure: 0.3-1.0 (Mpa)

4.3 The flow rate of the mixed liquid is ≥4L / s.

4.4 Maximum foaming volume ≥200 cubic meters / min.

4.5 Proportion of mixed liquid: 3% —6%.

4.6 Foaming multiple: 201-1000.

V. Reconnaissance System Parameters
5.1 Environmental awareness (as reflected in the test report)

5.1.1 Lifting mechanism: equipped with automatic lifting platform

5.1.2 ★ Lifting height: initial height 1340mm, height 2030mm after lifting

5.1.3 Detection categories:

CO2: 0-5% VOL

CH4: 0-100% VOL

CO: 0-1000ppm

H2S: 0-100ppm

Temperature range: -25 ° C to 60 ° C

Humidity range: 0% RH to 90% RH

5.2 Video perception

5.2.1 The video system consists of a fixed infrared camera and an infrared camera on the lifting platform.

5.2.2 The body camera can provide clear images and dynamic image stabilization under 0.001LUX low light; the camera should have zero-light

Degrees still effective

5.2.3 Collect the scene conditions clearly and display them on the LCD screen of the operation terminal.

5.2.4 With driving assistance line, 304 stainless steel, 5-15 meters infrared light automatically turns on, 1/3 Aptina 0238

Million HD images with IP68 protection

5.2.5 Technical requirements for sound collection: The pickup distance is 5 meters, the frequency range is 20Hz ～ 20kHz, and the sensitivity is

≥40dB

Configuration parameters of remote control terminal
6.1 Overall dimensions: 406 * 330 * 174mm

6.2 Overall weight: 8.5kg

6.3 Display: no less than 10-inch high-brightness LCD screen, 4-way video signal switching

6.4 Working time: 8h

6.5 Auxiliary tools: shoulder strap, tripod
