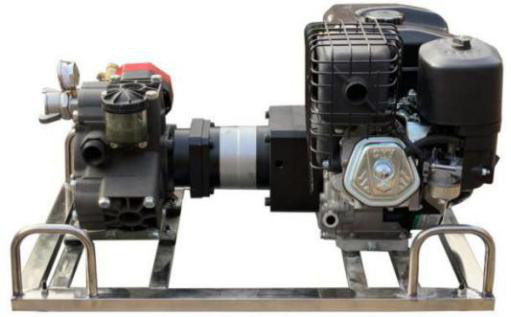

LT95/15 High Pressure Forest Fire Pump with Stainless Steel Frame and 95 L/min Flow Rate in Mobile Type

LT95/15 Portable Remote Delivery High Pressure Forest Fire Pump is designed for demanding firefighting applications with robust construction and reliable performance.

• Stainless steel frame for easy transport and durability
• Horizontally arranged pump shaft to minimize vibration
• Plunger hydraulic diaphragm pump body allows sand and gravel particles to pass through
• Low water quality requirements with minimal engine power loss
• Operates normally at 25° horizontal and vertical tilt angles
• 40mm hose diameter with 18MPa burst pressure
• Polyester filament surface with imported rubber lining
• High-pressure forest fire connection system
• Powered by forced air-cooled four-stroke gasoline engine

The pump features an imported 3-cylinder hydraulic piston diaphragm design. The pump body is manufactured using high-strength aluminum alloy die-casting to prevent breakage during high-pressure operation. Connecting rods and eccentric shafts are made from nitrided aluminum-based alloy and forged for maximum strength. The hydrobutylene rubber diaphragm provides tens of thousands of hours of operation without replacement. Oil-water separation technology ensures mechanical components are fully immersed in oil, eliminating friction and extending service life.

Planetary reducer design provides superior performance compared to traditional star reducers. Three-sided small gear meshing with large gear ensures full-range engagement without gear dropout. Special treatment maintains engine power efficiency above 2000 RPM, enhancing water pump performance.
