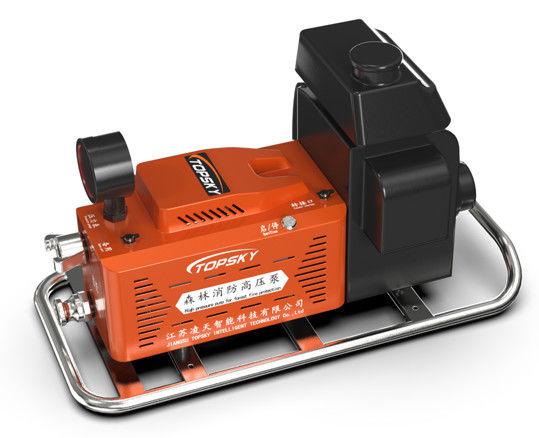

Lightweight High Pressure Forest Fire Pump with 22 L/min Standard Flow Rate for Efficient Fire Fighting

High-pressure forest fire pump is an ultra-light pump group developed to adapt to forest fire fighting. The pump group adopts Honda engine and diaphragm pump, featuring lightweight construction, compact design, and excellent stability. With combination back-type and hand-pull start options, it's easy to carry and simple to operate with minimal training required. Suitable for forest fire fighting and long-distance water transmission to fire sites, as well as fire fighting in rural factories, mines, and small towns where conventional equipment cannot reach.

• Grassland fire fighting
• Forest fire fighting
• Mountain fire fighting
• Town fire fighting

• Double start system: one-click electric start and hand-pull start
• Circulation water cooling system: reduces reducer temperature and minimizes high temperature effects
• Self-priming foam device: enables rapid conversion between water and foam for different scenarios

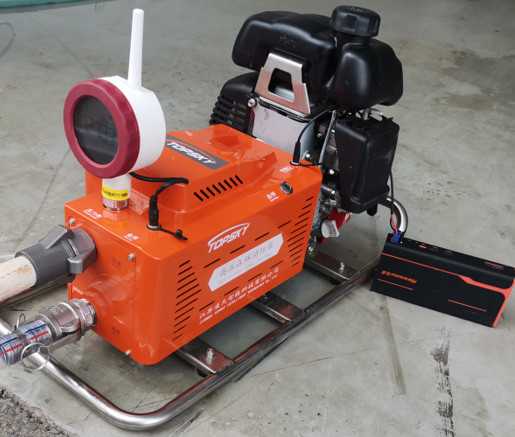

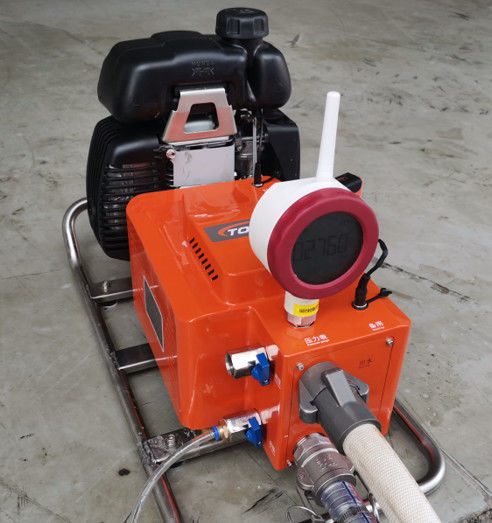

• Intelligent monitoring system: GPS positioning, pressure monitoring, temperature monitoring, 4G transmission
• Convenient carrying options: simple operation and easy transport
• Long transport distance and high lift capability
• No-load operation: continuous pump operation with flexible hose addition
• Strong self-priming ability: 7 meters vertical height, 300 meters suction at 1 meter height, 100 meters suction at 4 meters height
• Transmission distance: 10-20 kilometers with vertical height of 300-500 meters, efficiency over 95%
• Hydraulic plunger diaphragm pump: long service life with plunger-driven diaphragm for suction and drainage, mechanical parts not in direct contact with water
