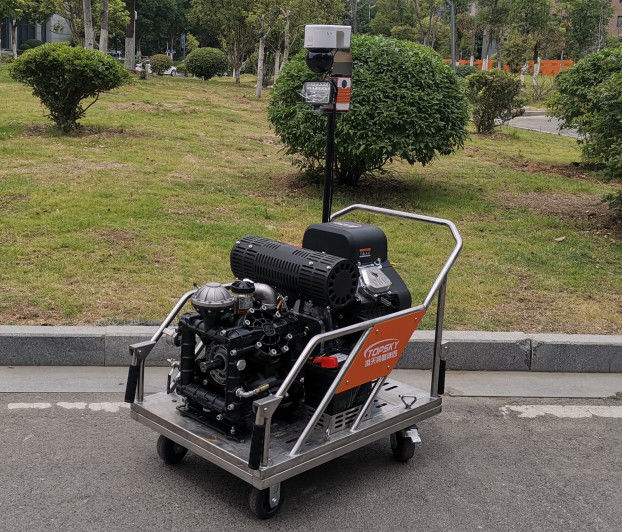

Energy Saving Environmental Protection High Head Pump with Ultra-Long Working Time for Forest Fire Fighting

Contact Now

Energy Saving Environmental Protection High Head Pump with Ultra-Long Working Time for Forest Fire Fighting

Minimum Order Quantity :	1 set	Price :	USD12000-13000
Packaging Details :	Export package	Delivery Time :	15 working days
Payment Terms :	T/T	Supply Ability :	50 Sets/Month

Place of Origin:	China	Brand Name:	TOPSKY
Model Number:	TSP7.0

Detail Information
Engine Type:	V-twin, Four-stroke, Air-cooled, Overhead Valves	Engine Power:	≥25KW (35HP)
Engine Starting System:	Electric Start	Total Weight:	≤180kg
Max Flow Rate::	≥185L/min	Max Pressure::	5MPa
Highlight:	Environmental Protection High-Head Pump , Ultra-Long Working Time High-Head Pump , Forest Fire Fighting High-Head Pump

Product Description

Powerful High Head Pump For Forest Fire Fighting

Energy Saving Environmental Protection Ultra-Long Working Time

Product Overview

The high-head pump is a large-flow pump developed by our company to adapt to the special working environment of forest fire fighting. It realizes advantages of energy saving and environmental protection of the engine, stable output, strong power, and ultra-long working time. The pump has a larger flow, higher head and longer conveying distance. The pump unit adopts an engine and diaphragm pump, with a lightweight, compact structure, small footprint, and good stability. It features hand-held and cart-mounted designs, making it easy to carry and operate. Users only need simple training to operate it proficiently. It can be used in foresting to convey water sources to the fire scene for firefighting from a distance. The high-pressure forest fire pump for long-distance conveyance is also suitable for firefight in small and medium-sized towns, rural areas, and mines where fire trucks cannot arrive in time or cannot reach the center of the fire.

Scope of Application

Grassland fire fighting
Forest fire prevention and control
Mountain fire fighting
Urban fire fighting

Product Features

Large flow capacity
Equipped with gas detection function
Equipped with panoramic monitoring function
Equipped with night lighting function
Equipped with real-time positioning function

Technical Parameters

Parameter	Specification
Engine Type	V-twin, four-stroke, air-cooled, overhead valves
Max Engine Power	≥25KW (35HP)
Engine Starting System	Electric start
Pump Structure	Four-cylinder diaphragm pump, gearbox is a planetary
Total Weight	≤180kg
Overall Dimensions	≤900×650×670 mm
Max Flow Rate	≥185L/min
Max Pressure	5MPa
Max Head	500m (height)
Max Range	≥25m
Max Suction	≥7m
Inlet Port Size	DN40
Outlet Port Size	DN40
Priming Time	≤5s
Priming Method	Suction, no water filling required

Monitoring System

Pan-tilt: 2.7~12 mm, 4x optical/uses high-efficiency infrared array, low power consumption, illumination distance up to 50m
Rotation range: 350° horizontal rotation, 0°~90° vertical rotation
Network transmission: 4G

Lighting System

Uses 36 LEDs, with a power of 108W

Gas Detection Alarm System

Detection types: Carbon monoxide [This parameter is consistent with the national inspection report]
Positioning mode: supports GPS positioning, with a positioning accuracy error ≤3 meters [This parameter is consistent with the national inspection report]
Network mode: supports 4G/5G ultra-long-distance data transmission [This parameter is consistent with the national inspection report]
Cloud platform management: can remotely monitor the gas status of the equipment in real-time, and manage the entire life cycle [This parameter is consistent with the national inspection report]
Visual management: supports visual display, GIS map positioning, and graphic display functions [This parameter is consistent with the national inspection report]
Multi-platform management: supports interaction between PC and APP, with real-time automatic data synchronization [This parameter is consistent with the inspection report]

Certifications

The toxic and harmful gas detection alarm system for special disaster rescue has passed the national authoritative inspection institution, and a copy of the certificate is provided.

Has a measuring instrument type approval certificate (CPA) [A copy of the measuring instrument type approval certificate, with the manufacturer's seal is provided as proof]

Provides software copyright certificates for the [Emergency Firefighting Equipment Cloud Management Platform System] and [Emergency Resource Information Management Platform]
