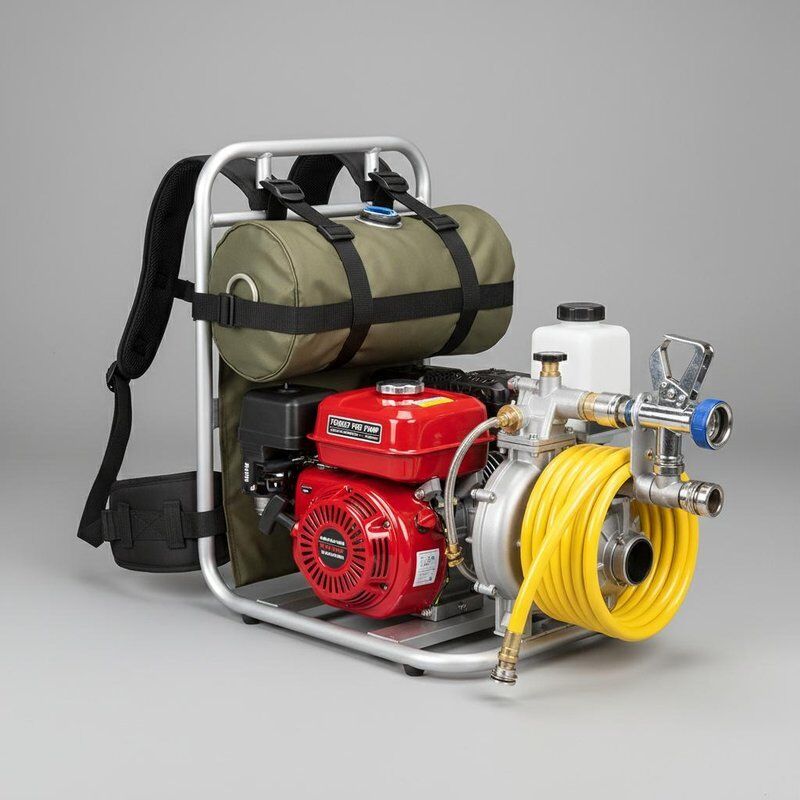

4MPa Pressure Self-Suction Foam Remote Transport Backpack High Pressure Forest Fire Pump

Minimum Order Quantity : 1set Packaging Details : Aluminium case
Delivery Time : 30days Payment Terms : T/T,Western Union
Supply Ability : 100sets/month
Place of Origin: China Brand Name: TOPSKY
Model Number: LD-130-2.0

Detail Information

Name: Forest Fire Fighting Use Self-suction Foam Backpack Remote Transport High-pressure Forest Fire Pump Pump Weight:: 6.8kg
Maximum Pressure:: 4MPa Standard Flow Rate: 40L/min
Range (water): 15M Horizontal Conveying Distance:: 15km
Highlight:

4mpa pressure forest fire pump

,

self suction forest fire pump

,

foam forest fire pump

Product Description

4MPa Pressure Self-Suction Foam Forest Fire Pump

Forest fire fighting use self-suction foam backpack remote transport high-pressure forest fire pump designed for professional firefighting applications.

Product Overview

Negative remote transmission high pressure forest fire pump is an ultra-light pump group developed specifically for forest fire extinguishing. The pump group utilizes Honda engine and diaphragm pump technology, featuring lightweight construction, compact structure, small footprint, and excellent stability. The back negative + hand pull design ensures easy transport and operation with minimal training required. Capable of delivering water from long distances to fire sites, this pump is also suitable for firefighting in small and medium towns, rural factories, and other locations where fire trucks cannot reach promptly.

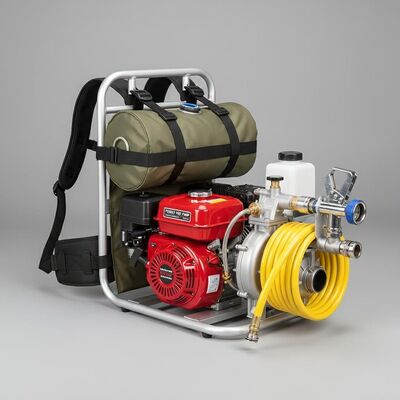

4MPa Pressure Self-Suction Foam Remote Transport Backpack High Pressure Forest Fire Pump 0
Key Features
  • Self-Suction Foam Unit: Unique self-suction foam device enables water and foam mixing ratio adjustment between 0-3%, allowing rapid transformation between water and foam modes for different firefighting scenarios.
  • Circulating Water Cooling System: Reduces high temperatures between engine and reducer, ensuring sustainable operation and minimizing adverse high-temperature effects.
  • Dual Start System: Electric start with one-button operation combined with hand-pull start for double reliability.
  • Portable Transport Design: Hand-pull + backpack combination with elastic casters, hand-pull rod, and back straps for easy transportation across mountain, mud, and complex terrain.
Technical Specifications
Water Pump Specifications
Parameter Specification
Pump Weight 6.8kg
Maximum Pressure 4MPa
Standard Flow Rate 40L/min
Range (Water) 15m
Range (Foam) 10m
Foam Mixing Ratio 0-3%
Lift 350m (vertical height)
Maximum Suction Range 4.6m
Horizontal Conveying Distance 15km
Inlet Diameter 25mm
Outlet Diameter 25mm
Total Weight 25kg
Machine Dimensions (L×W×H) 460mm × 370mm × 670mm
Engine Specifications
Parameter Specification
Engine Model Honda GXH50
Engine Type Horizontal bar, forced air cooling, 4-stroke
Displacement 49cc
Maximum Power 2.1HP
Startup Mode Hand-pull type and electric type dual start

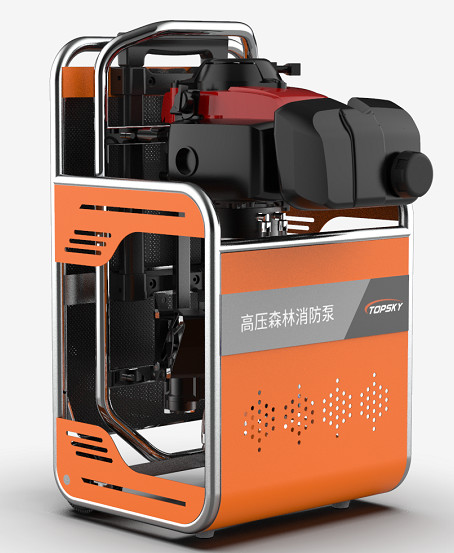

4MPa Pressure Self-Suction Foam Remote Transport Backpack High Pressure Forest Fire Pump 1
4MPa Pressure Self-Suction Foam Remote Transport Backpack High Pressure Forest Fire Pump 2
