RXR-M30LG Portable Electric Fire Fighting Robot Wheel Type Four Wheel Drive

Minimum Order Quantity : 1set Price : USD18000
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: RXR-M30LG

Detail Information

Size: 747mm* 695mm* 432mm Weight: 58.2 Kg
Jet Distance: 61m Obstacle Clearance Height: 160mm
Maximum Flow Rate: 30,3L/s Remote Control Distance: 816m
Walking Speed: 1.39m/s
Highlight:

Portable Electric Fire Fighting Robot

,

Wheel Type Fire Fighting Robot

,

Four Wheel Drive Fire Fighting Robot

Product Description



Portable electric wheel type four-wheel drive fire fighting robot

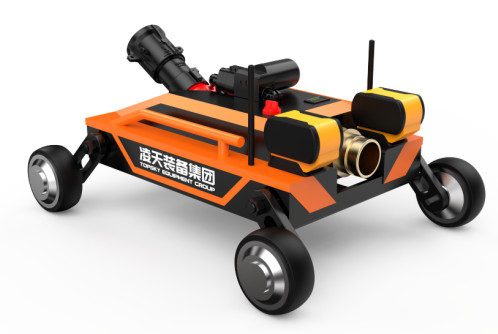

                     RXR-M30LG Portable Electric Fire Fighting Robot Wheel Type Four Wheel Drive 0

1.Product Overview



 The portable electric wheeled four-drive fire fighting robot is a small fire fighting robot developed by our company to adapt to the special working environment of fighting. It is lightweight, easy to carry, and simple to operate. Users only need brief training to operate it proficiently. It can be used in various petrochemical enterprises, tunnels, subways, and other places where oil and gas leaks, toxic gas explosions, tunnel and subway collapses, and other disasters are. The fire fighting robot plays a crucial role in emergency rescue operations, mainly replacing firefighters in dangerous chemical fire scenes or smoke-filled fire scenes.



2. Product Features

  • Small size, light weight, easy to carry;
  • Fast speed, can quickly reach the rescue site;
  • Can achieve-distance remote control and video transmission;
  • The water cannon has a one-key remote control self-swing function;
  • The robot has strong towing capacity;
  • The robot's water inlet has a quick-release system for hoses;
  • Power source: lithium battery, quick-plug structure for easy replacement at any time;
  • Retraction function: each wheel can be controlled separately, improving obstacle crossing performance and better adapting to rescue scenarios;
  • Self-protection spray system: robot should have a self-protection spray system to cool down the robot in the fire scene.



3.Main Technical Indicators



3.1 Overall Performance Parameters

1. Overall dimensions: 750×700×420 mm;

2. Total weight: 59.5 kg;

3. Traveling speed: 6.4 km/h;

4. Ground clearance: 120 mm;

5. Obstacle crossing height: 160 mm;

6. Climbing ability: 64%;

7. Lateral stability angle: 40°;

8. Remote control distance: 300 m;

9. Working time: 90 min (per battery);

10. Power: Lithium battery, quick-release structure for easy replacement;

11. Towing capacity: Can tow a 35-meter long DN60 water-filled while driving normally;

12. Driving mode: Electric four-wheel drive;

13. Retractable function: The robot can be remotely controlled to retract to preset state, reducing its size.



3.2 Firefighting System Parameters

1. Spraying distance: 62 m;

2. Maximum flow rate:36 L/s;

3. Working pressure: 1.0 MPa;

4. Elevation angle: 20°~70°;

5. Horizontal rotation angle: -20°~20°;

6. Water supply interface: DN80;

7. Self-swing function: Can remotely controlled to swing automatically with one button;

8. Self-protection sprinkler system: The robot should have a self-protection sprinkler system to cool down the fire scene;

9. Hose auto-detachment: The robot has a quick hose detachment system.

















Company Information



Beijing Topsky Intelligent equipment Group Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.

Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of 1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.

Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals, and armed police in many fields. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.

    So far, many products have been exported to more than 10 countries.

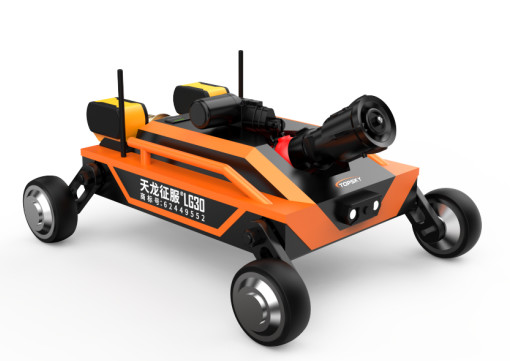

 RXR-M30LG Portable Electric Fire Fighting Robot Wheel Type Four Wheel Drive 1
