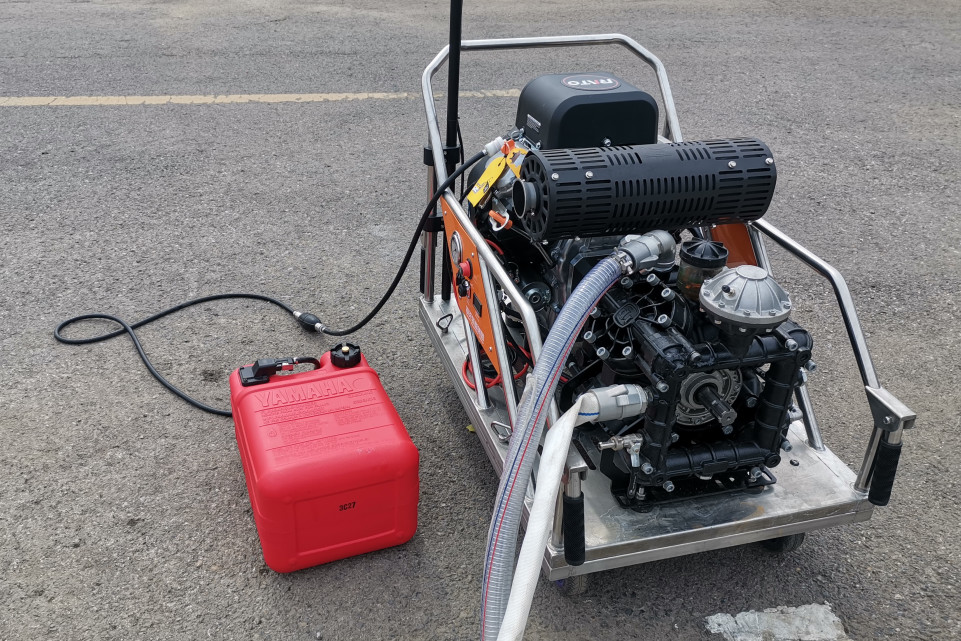

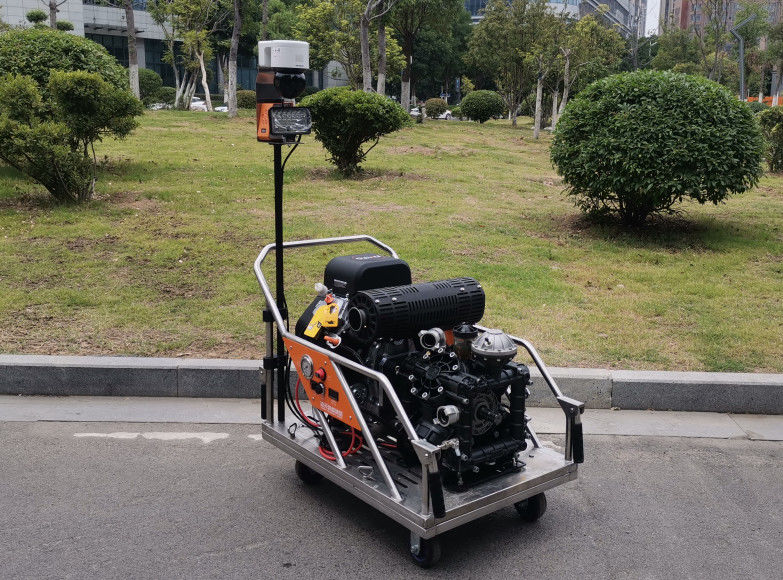

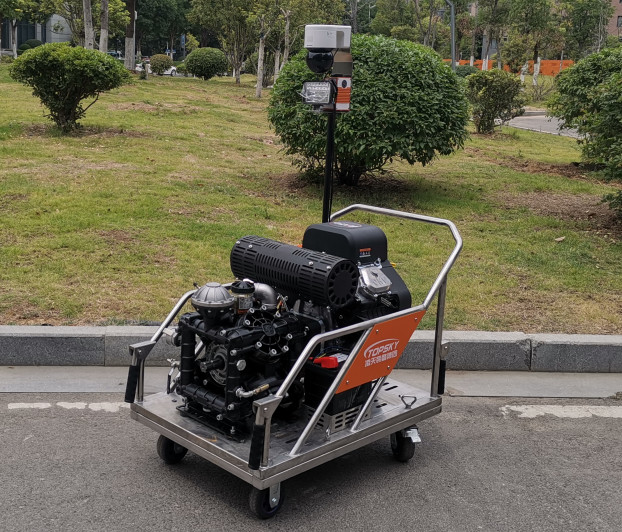

Powerful High Head Pump For Forest Fire Fighting Energy Saving Environmental Protection Ultra-Long Working Time

1. Grassland fire fighting

2. Forest fire prevention and control

3. Mountain fire fighting

4. Urban fire fighting

• ★Large flow;
• ★Equipped with gas detection function
• ★Equipped with panoramic monitoring function;
• ★Equipped with night lighting function.
• ★Equipped with real-time positioning function

• Engine Type: V-twin, four-stroke, air-cooled, overhead valves
• Max Engine Power: ≥25KW (35HP)
• Engine Starting System: Electric start
• Pump Structure: Four-cylinder diaphragm pump, gearbox is a planetary
• Total Weight: ≤180kg
• Overall Dimensions: ≤900×650×670 mm
• Max Flow Rate: ≥185L/min
• Max Pressure: 5MPa
• Max Head: 500m ( height)
• Max Range: ≥25m
• Max Suction: ≥7m
• Inlet Port Size:DN40
• Outlet Port Size: DN40
• Priming Time: ≤5s
• Priming Method: suction, no water filling required
• Pan-tilt: 2.7~12 mm, 4x optical/uses high-efficiency infrared array, low power consumption, illumination distance up to 50m; rotation range: 350° horizontal rotation,0°~90° vertical rotation; network transmission: 4G
• Lighting system: uses 36 LEDs, with a power of 108W
• Equipped with a remote intelligent gas detection alarm system, with the following technical parameters:

• Detection types: Carbonoxide [This parameter is consistent with the national inspection report]
• Positioning mode: supports GPS positioning, with a positioning accuracy error ≤3 meters [ parameter is consistent with the national inspection report]
• Network mode: supports 4G/5G ultra-long-distance data transmission [This parameter is consistent the national inspection report]
• Cloud platform management: can remotely monitor the gas status of the equipment in real-time, and manage the entire life cycle [ parameter is consistent with the national inspection report]
• Visual management: supports visual display, GIS map positioning, and graphic display functions [This parameter is consistent the national inspection report]
• Multi-platform management: supports interaction between PC and APP, with real-time automatic data synchronization [This parameter is consistent with the inspection report]
• The toxic and harmful gas detection alarm system for special disaster rescue has passed the national authoritative inspection institution, and a copy of the certificate provided.
• Has a measuring instrument type approval certificate (CPA) [A copy of the measuring instrument type approval certificate, with the manufacturer's seal is provided as proof]
• Provides software copyright certificates for the [Emergency Firefighting Equipment Cloud Management Platform System] and [Emergency Resource Information Management Platform
