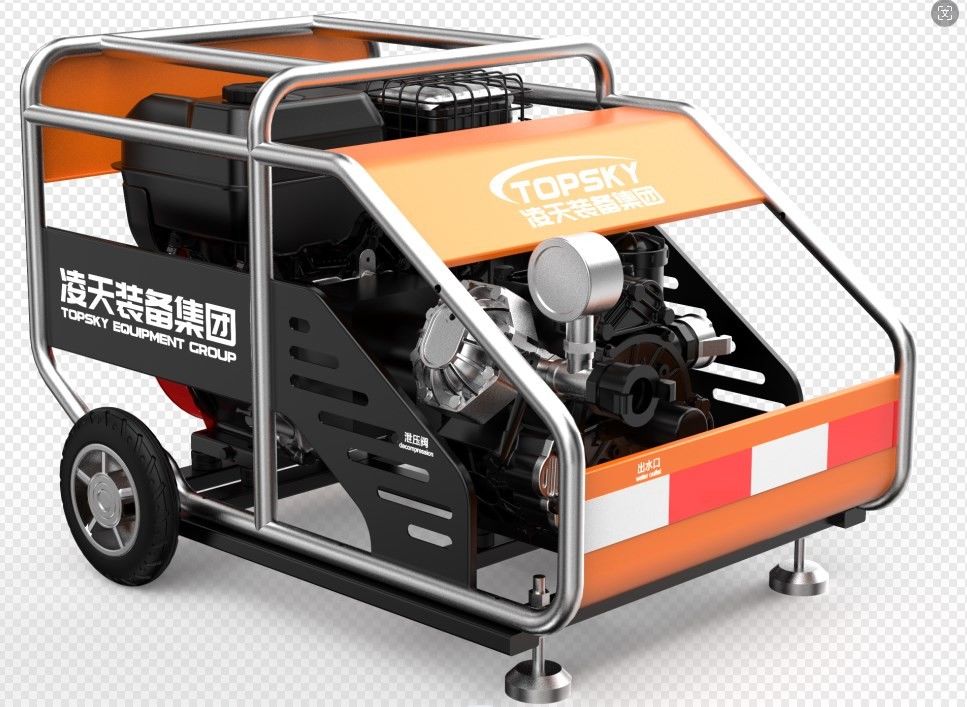

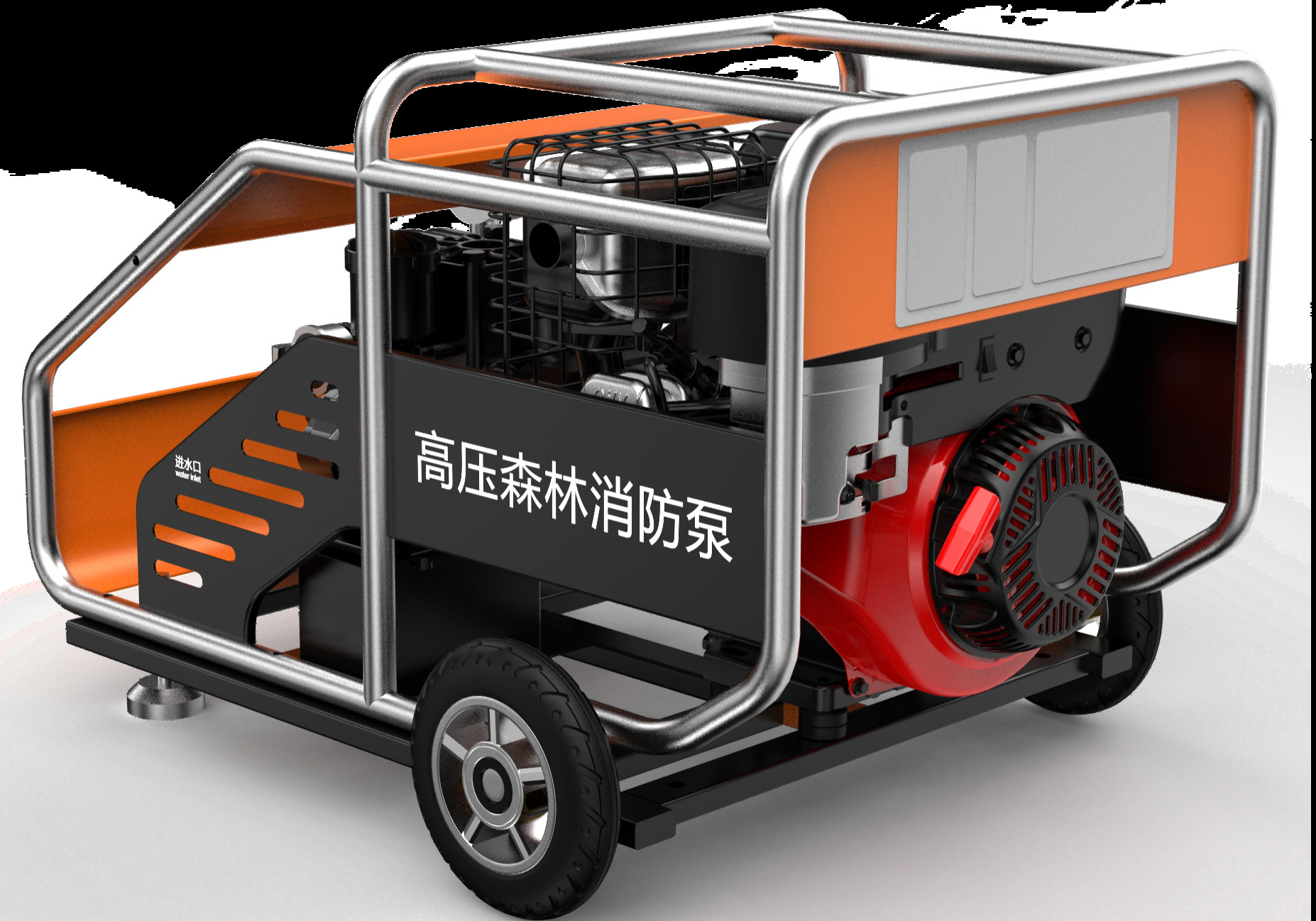

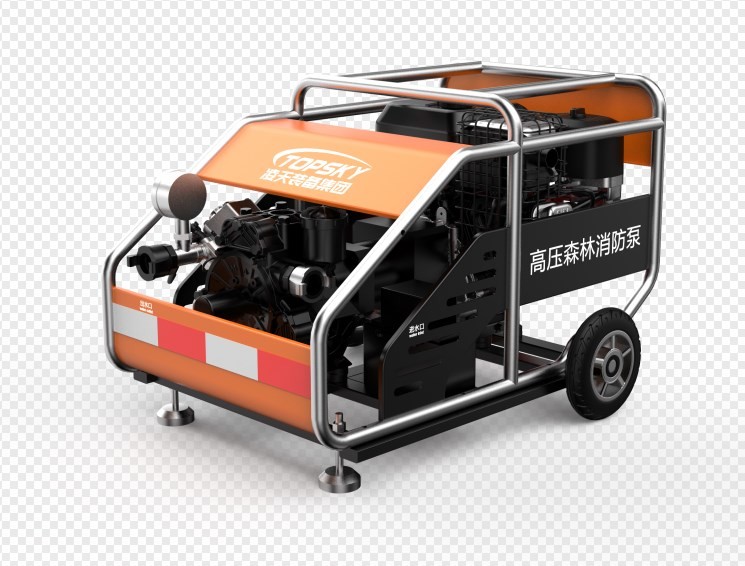

Forest Fire Pump TSP5.0 Maximum Pressure 5.0 MPa For Effective Firefighting

Contact Now

Forest Fire Pump TSP5.0 Maximum Pressure 5.0 MPa For Effective Firefighting

Minimum Order Quantity :	1 set	Price :	USD5000-6000
Packaging Details :	Export package	Delivery Time :	15 working days
Payment Terms :	T/T	Supply Ability :	50 Sets/Month

Place of Origin:	China	Brand Name:	TOPSKY
Model Number:	TSP5.0

Detail Information
Range ( Foam )::	18m	Range ( Water )::	25m
Working Pressure::	3.0 MPa	Maximum Pressure::	5.0 MPa
Standard Flow::	85 L/min	Head::	500 M
Highlight:	Effective Firefighting Forest Fire Pump , Forest Fire Pump , 5.0 MPa Forest Fire Pump

Product Description

Forest Fire Pump TSP5.0 Maximum Pressure 5.0 MPa For Effective Firefighting 0

1.Product Overview

The high-pressure forest fire pump is a miniature engine static turbocharging device developed by our company to adapt to the special working environment of fire fighting. It realizes the advantages of energy saving and environmental protection, stable output, strong power, and long working hours for engines with the same displacement. It increase the power of the engine by more than 1.5 times under the same displacement, making the pump flow larger, the head higher, the weight lighter and the conveying distance farther, which cannot be achieved by installing ordinary engines. The pump set adopts the engine and diaphragm pump, with light weight, compact, small footprint, and good stability. It combines hand-held and hand-pulled modes, making it easy to carry and operate. Users only need simple training to it proficiently. It can be used in forest fire fighting to convey water sources to the fire scene for fire fighting over long distances. The high-pressure forest fire for long-distance conveyance is also suitable for small and medium-sized towns, rural areas, factories, and mines where fire trucks cannot arrive in time or cannot reach center of the fire for fire fighting.

2.Scope of Application

1. Grassland fire fighting

2. Forest fire prevention and control

3. Mountain fire fighting

4. Urban fire fighting

3.Product Features

★ Intelligent monitoring system: Can achieve GPS positioning, pressure monitoring, temperature monitoring, 4G transmission;
★ Foam mixing device Can provide foam ratio adjustment for the pump group;
★ Turbocharging device: Direct current enhanced vortex forced fan, effectively ensuring engine power and cylinder cooling

4.Technical parameters

4.1 Pump Technical Specifications:

★ Range ( Foam ): 18m
Range ( Water ): 25m
Working Pressure: 3.0 MPa
Maximum Pressure: 5.0 MPa
Standard Flow: 85 L/min
Head: 500 m
Maximum Suction: 7 m
Inlet Diameter: 32 mm
Outlet diameter: 40mm
Overall Dimensions: 875×715×585 mm
Total Weight: 106.5 kg

4.2 Engine Technical Specifications:

★ Engine Type: Air-cooled, Four-stroke, Turbo
Displacement: 420cc
Maximum Power: 13.5HP
Starting Methods: Electric, Pull-startIII.

4.3 Network Transmission:

★ Measurement Accuracy: 0.5 class
★ Pressure Range: 0-6 MPa
★Operating Temperature: -30°C to 70°C
★4G communication, connectable to APP and platforms, comes with a 4G data card, data upload interval is 20 seconds supports third-party platform access.
