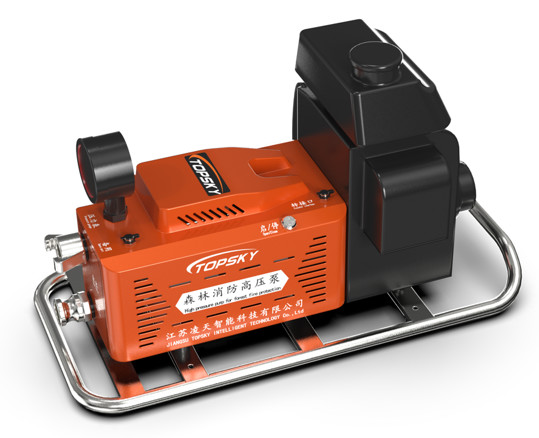

Lightweight High Pressure Forest Fire Pump TSP3.0 3.8kg Pump Weight 22 L/min Standard Flow Rate

Product background:

In recent years, the forest grassland fire gradually increased, affected by natural weather, forest environment and other factors, forest fire has the characteristics of strong sudden, difficult, difficult to control in a short time, not only destroy forest resources, destroy the ecological environment, cause serious ecological environmental problems. As is known to all, forest fire fighting equipment is the basic element of the comprehensive prevention and control ability of forest fire prevention, and is the equipment support of scientific, mechanized and intelligent forest fire prevention. However, most of the forest areas in China are located in the remote forest areas. These areas are usually not only faced with problems such as inconvenient transportation, backward equipment and scattered personnel organization, and the large area of forest coverage makes the conventional fire fighting equipment completely play a role.

Ø Grassland fire fighting

Ø Forest fire fighting

Ø Mountain fire fighting

Ø Town fire fighting

• ★ Double start: one-click start, hand-pull start
• ★ Circulation water cooling system: reduce the temperature of the reducer, reduce the adverse effects of high temperature.
• ★ Self-priming foam device: can achieve the rapid conversion of water and foam, to deal with different occasions.

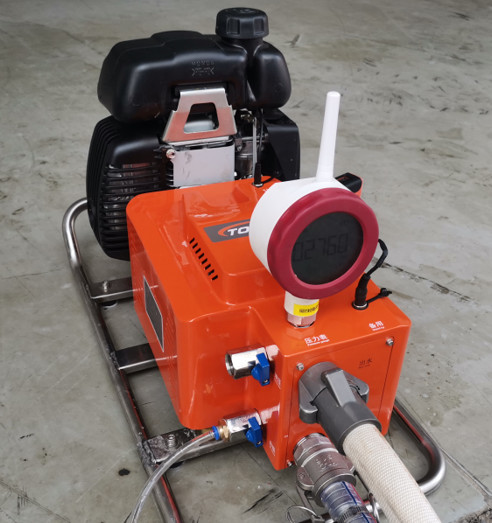

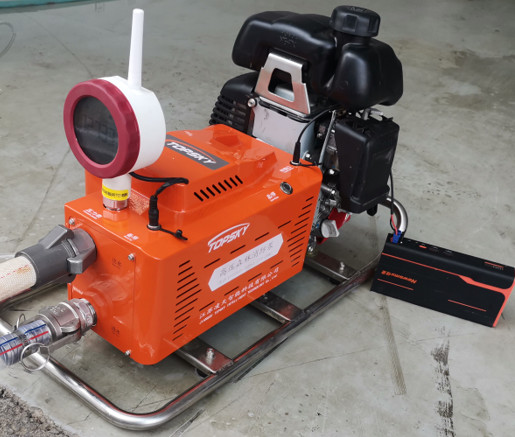

• ★ Intelligent monitoring system: can realize GPS positioning, pressure monitoring, temperature monitoring, 4G transmission
• ★ Convenient type to carry (optional): simple operation, easy to carry
• Long transport distance, high lift distance.
• No-load operation: the pump works continuously, can increase at any time, less hose and transfer

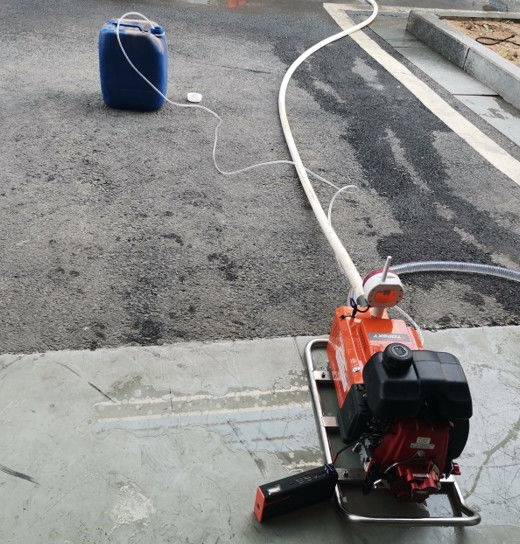

• Self-priming ability of strong vertical height of 7 meters, vertical height of 1 meter, can self-suction of 300 meters, vertical height of 4 meters, self-suction of 100 meters.
• With the transmission distance of 10-20 kilometers and the vertical height of 300-500 meters, the efficiency can reach more than 95%.
• The hydraulic plunger diaphragm pump has a long service life and remarkable economic benefits. It uses the plunger to promote the diaphragm to achieve the function of suction and drainage. The mechanical part is not in direct contact with the water, which greatly extends the service life.

1. Water pump technical specifications:

• ★ Pump weight: 3.8kg
• ★ Range (foam): 16m
• ★ Surface temperature: 50
• Maximum pressure: 3.0MPa
• Standard flow rate: 22 L/min
• Head stage: 300m
• Horizontal delivery distance: 15km

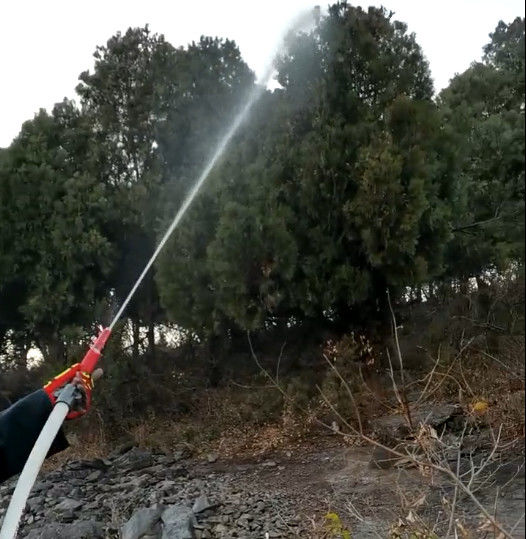

• Range (water): 18m
• Maximum suction range: 7m
• Inlet water diameter: 25mm
• Water diameter: 25mm
• Overall weight: 18kg
• Overall size: length, 600 wide, 300 high, 400mm

2,Engine technical specifications:

• Engine model: Honda GXH 50
• Engine type: horizontal bar, forced air cooling, 4-stroke
• Displacement capacity: 49cc
• Maximum power: 2.1HP
• ★ Start-up mode: electric type, hand-pull type

3,applicable Carry method:

• ★ Trolley type

• Material: aluminum alloy / PP plastic
• Carrying capacity Weight: 35kg
• Weight: 3kg
• Fold size: 39 * 17 * 64cm
• Deployment size: 39 * 28 * 106cm

• ★backpack

• Material: Codola
• Carrying capacity Weight: 25kg
• Weight: 1.7kg

4, network transmission(domestic) :

• ★ Measurement accuracy: level 0.5
• ★ Pressure value: 0-6 Mpa
• ★ Operating temperature: -30℃ ~70℃

★ 4G communication, connected APP and platform, equipped with 4G traffic card, data upload 20 seconds / time; support third-party platform access.
