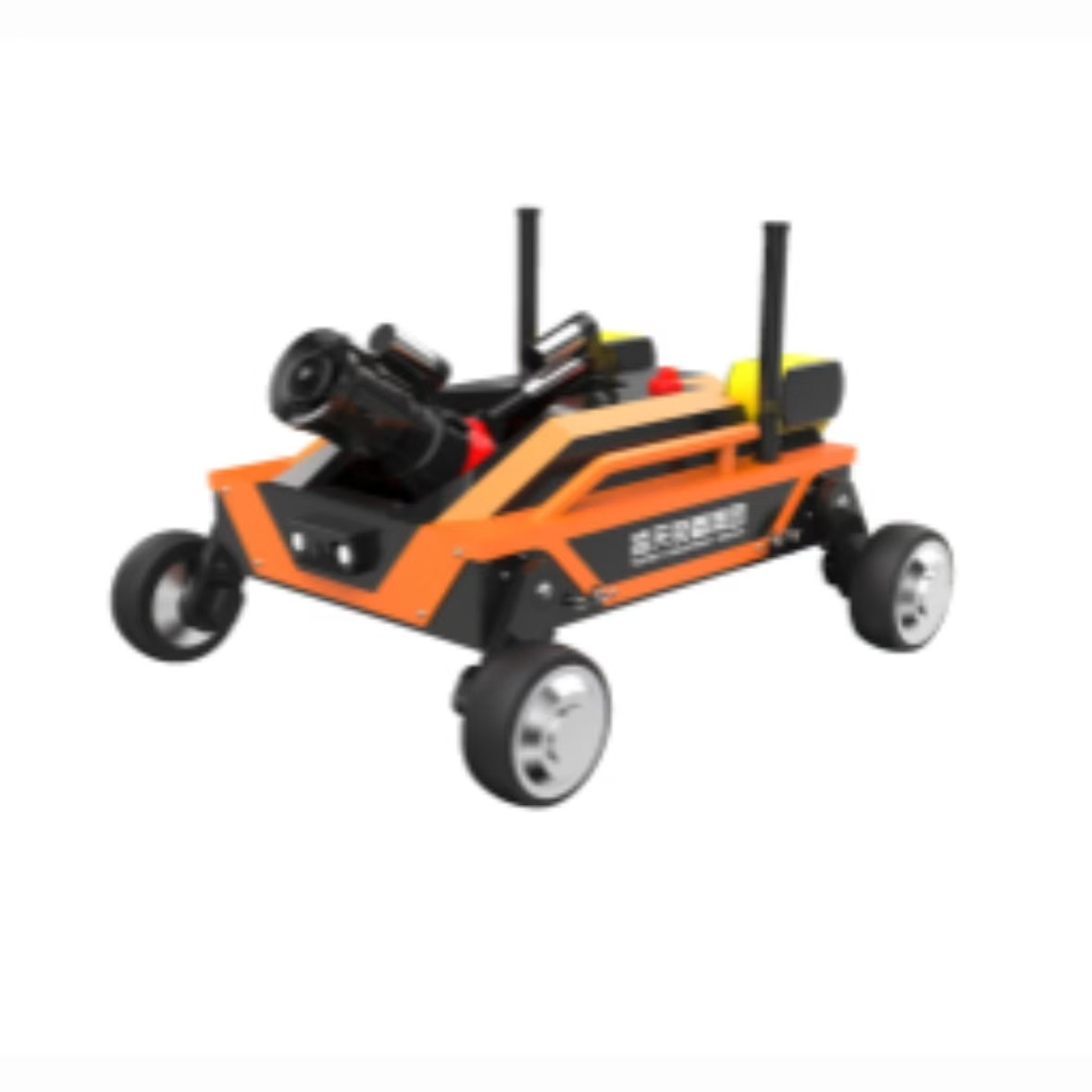

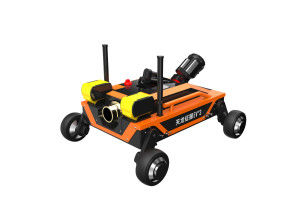

Portable Electric Four Wheel Drive Fire Fighting Robot

Product Description

1, Product Overview

Portable electric four-wheel drive fire-fighting robot is a small fire fighting robot developed by our company to adapt to the special working environment of fighting. It is lightweight, easy to carry, and simple to operate. Users only need brief training to operate it proficiently. It can be used in various petrochemical enterprises, tunnels, subways, and other places where oil and gas leaks, toxic gas explosions, tunnel and subway collapses, and other disasters are. The fire fighting robot plays a crucial role in emergency rescue operations, mainly replacing firefighters in dangerous chemical fire scenes or smoke-filled fire scenes.

2,Scope of Application

1. Fire rescue in large oil and chemical enterprises;

2. Tunnels, subways, and other places prone to collapse that require for rescue and firefighting;

3. Rescue in environments with leaking flammable gases and liquids, posing a high risk of explosion;

4. Rescue in environments with heavy smoke and toxic or harmful gases;

3, Product Features

1. Small size, light weight, easy to carry;

2. Fast speed, can quickly reach the rescue site;

3. Can achieve-distance remote control and video transmission;

4. The water cannon has a one-key remote control self-swing function;

5. The robot has strong towing capacity;

6. The robot's water inlet has a quick-release system for hoses;

7. Power source: lithium battery, quick-plug structure for easy replacement at any time；

8. Retraction function: each wheel can be controlled separately, improving obstacle crossing performance and better adapting to rescue scenarios;

9. Self-protection spray system: robot should have a self-protection spray system to cool down the robot in the fire scene.

4, Technical parameters

1. Overall dimensions: 750×700×420 mm;

2. Total weight: 59.5 kg;

3. Traveling speed: 6.4 km/h;

4. Ground clearance: 120 mm;

5. Obstacle crossing height: 160 mm;

6. Climbing ability: 64%;

7. Lateral stability angle: 40°;

8. Remote control distance: 300 m;

9. Working time: 90 min (per battery);

10. Power: Lithium battery, quick-release structure for easy replacement;

11. Towing capacity: Can tow a 35-meter long DN60 water-filled while driving normally;

12. Driving mode: Electric four-wheel drive;

13. Retractable function: The robot can be remotely controlled to retract to preset state, reducing its size.
