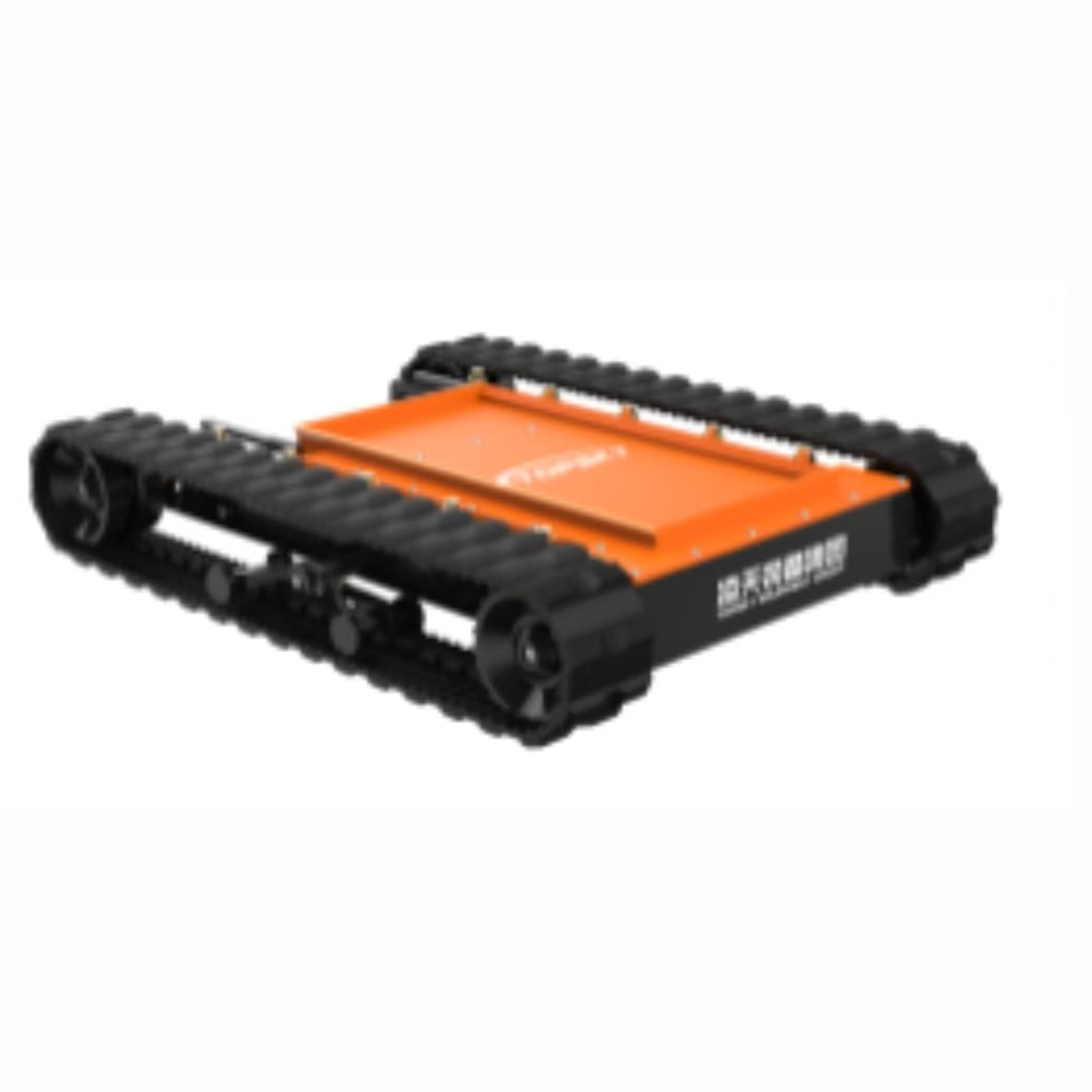

Small tracked robot chassis

Minimum Order Quantity :	2	Price :	USD48000/PCS
Delivery Time :	5-8 WEEK DAYS	Payment Terms :	T/T

Place of Origin:	CHINA	Brand Name:	TOPSKY

Product Description

Product Description

Overview:

Main function: The chassis of the small tracked robot uses lithium battery power as the power source, and is remotely controlled through wireless remote control. It can be carried in various forms, and the in-situ rotation design makes it more flexible to operate. Suitable for inspection and firefighting operations, the entire machine is equipped with standard explosion-proof connectors; It can be equipped with various forms to help you quickly build your ideal product.

Features:

Narrow areas, areas that are difficult for workers to reach

Tunnels, subways, and other places that are prone to collapse and require entry for rescue and firefighting

Rescue in an environment with a high possibility of explosion due to the leakage of flammable gases and liquids

This chassis platform can be used for monitoring environments with thick smoke and toxic and harmful gases

This platform can replace people to dangerous areas that experts cannot reach

Specification:

1. Small size and easy to carry
Robots are small in size, light in weight, and easy to transport.
2. Easy to operate
Power on direct connection, convenient and fast, ready to go.
3. Smooth operation
Differential independent suspension structure ensures smoother operation and more flexible turning, making it suitable for complex and changing environments
4. Overall dimensions: ≤ 650mm in length, 500mm in width, and 118mm in height (excluding universal joints and self detachment)
5. Motor selection: High precision DC servo motor with a total motor power of ≥ 1.6KW
6. Steering method: Differential in place steering
7. Weight: ≤ 25kg
8. Load: ≥ 50kg (flat pavement)
9. Maximum speed: ≥ 1.0m/s, remote control continuously variable transmission
10. Maximum climbing ability: ≥ 70% (or 35 °)
11. Maximum obstacle crossing height: 50mm
12. Track width: ≥ 80mm
13. Surface treatment: Whole machine baking paint
14. Main material: alloy steel/carbon steel square tube/aluminum alloy
15. Flame retardant robot tracks (optional): The tracks used for firefighting robots should be made of flame-retardant, anti-static, and high-temperature resistant rubber; The interior of the track is a metal skeleton; Equipped with track derailment protection design;
16. Control mode: wireless remote control
