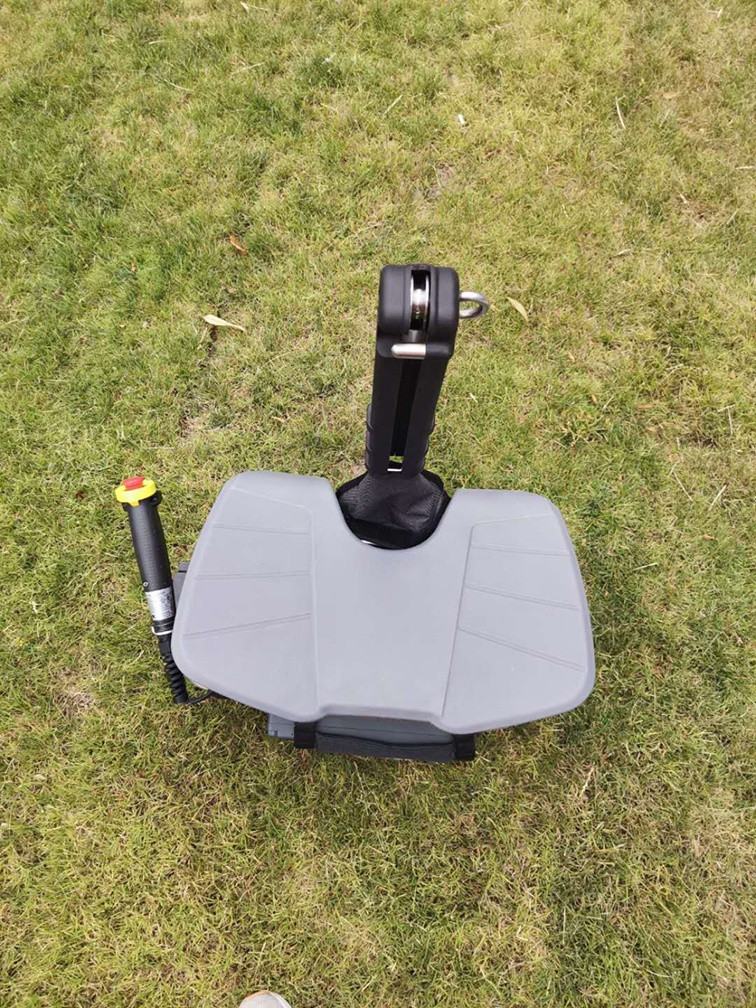

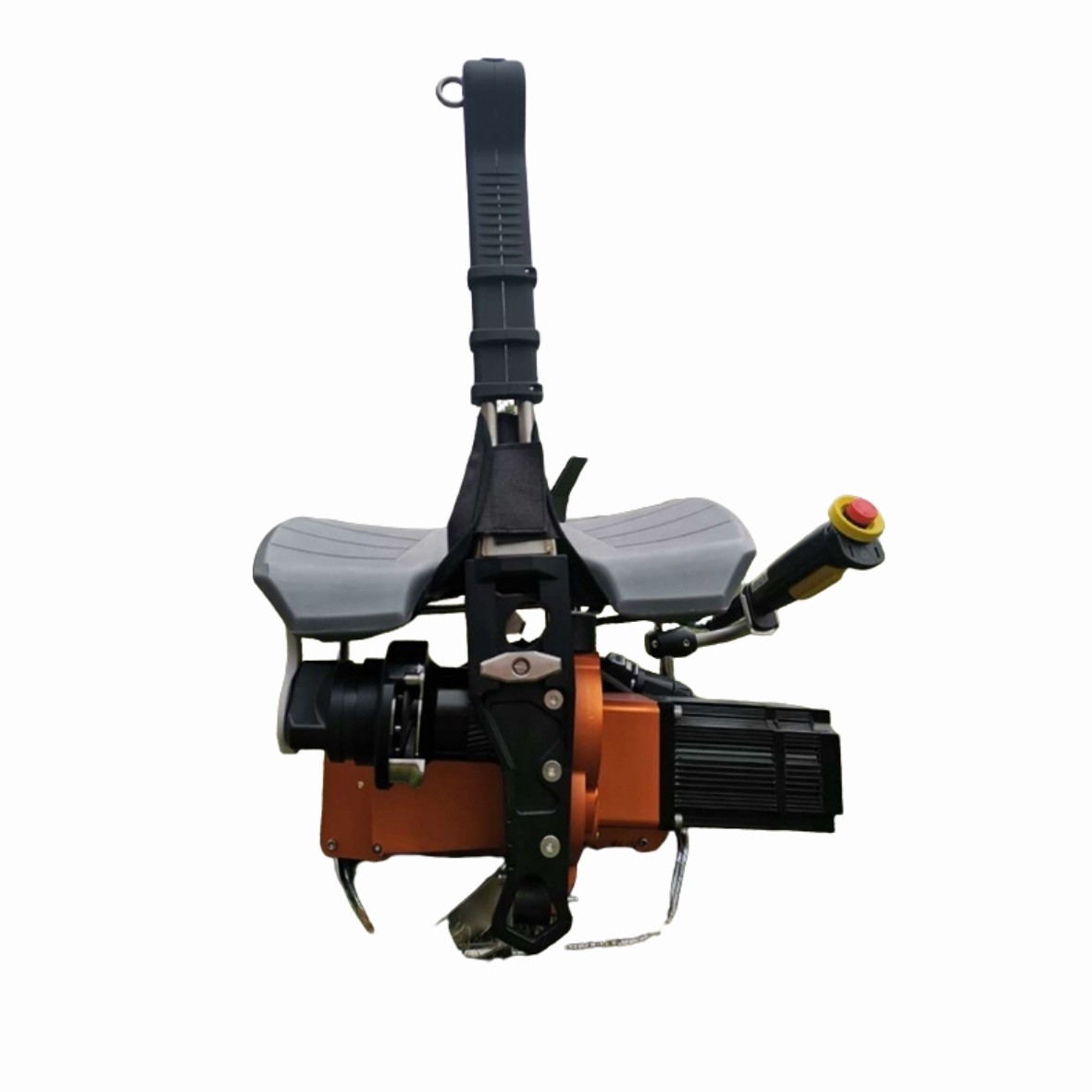

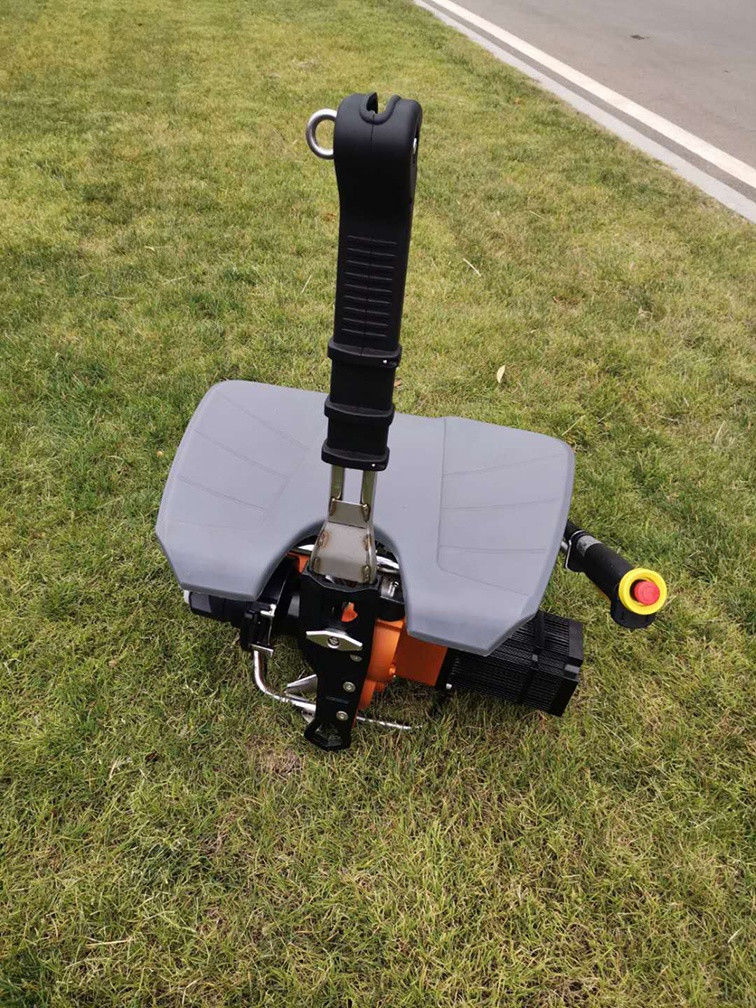

Seated automatic elevator

Minimum Order Quantity : 2 Price : USD18000/PCS
Delivery Time : 5-8 WEEK DAYS Payment Terms : T/T
Place of Origin: CHINA Brand Name: TOPSKY

Product Description

Overview:

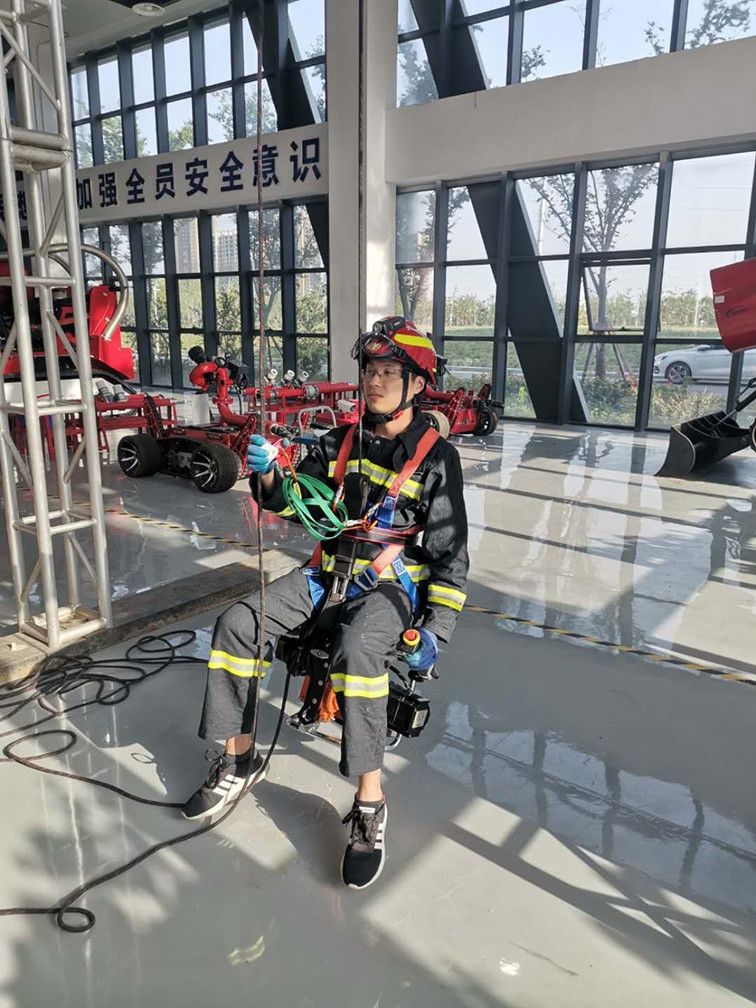

The seat-type automatic elevator is easy to carry and does not have any restrictions based on the site environment. It can stop at any position during the ascent or descent process. The ergonomic design of the seat saves the energy of personnel, allows them to adjust their postures, and frees their hands. It is applied in fields such as wind power, industrial facilities, power facilities, bridge erection, mountain rescue, fire rescue and disaster rescue. It is not merely a lift or a power hoist, but can also be used as a lightweight winch or pulling mechanism.


Features:

1. One set of seat-type automatic elevator (including: frame, motor, seat, power switch)

2. Elevator battery × 1 unit
3. 1 charger of 54.6V and 2A, 1 unit
4. Elevator rescue rope × 1 piece
5. Fall prevention device × 1 set
6. Outer packaging box × 1 piece



Specification:

1) Load: Safe working load ≤ 270 kg

2) Speed increase: 16 meters per minute
3) Protection level: IP54
4) Working environment temperature: -20ºC - 60ºC
5) Equipment weight: < 25 Kg
6) Dimensions: 820 * 570 * 370
7) Rope diameter: 10 - 13mm (EN1891)
8) Continuous working time: 60 minutes (130 kilograms)
20 minutes (270 kilograms)
