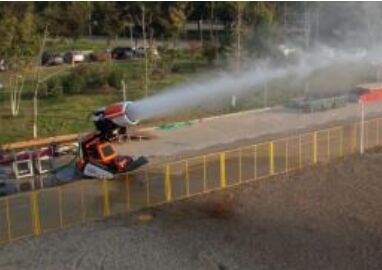

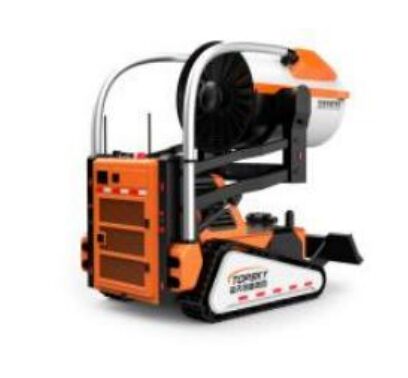

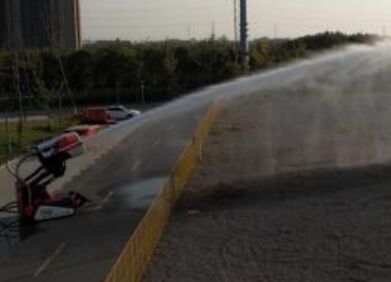

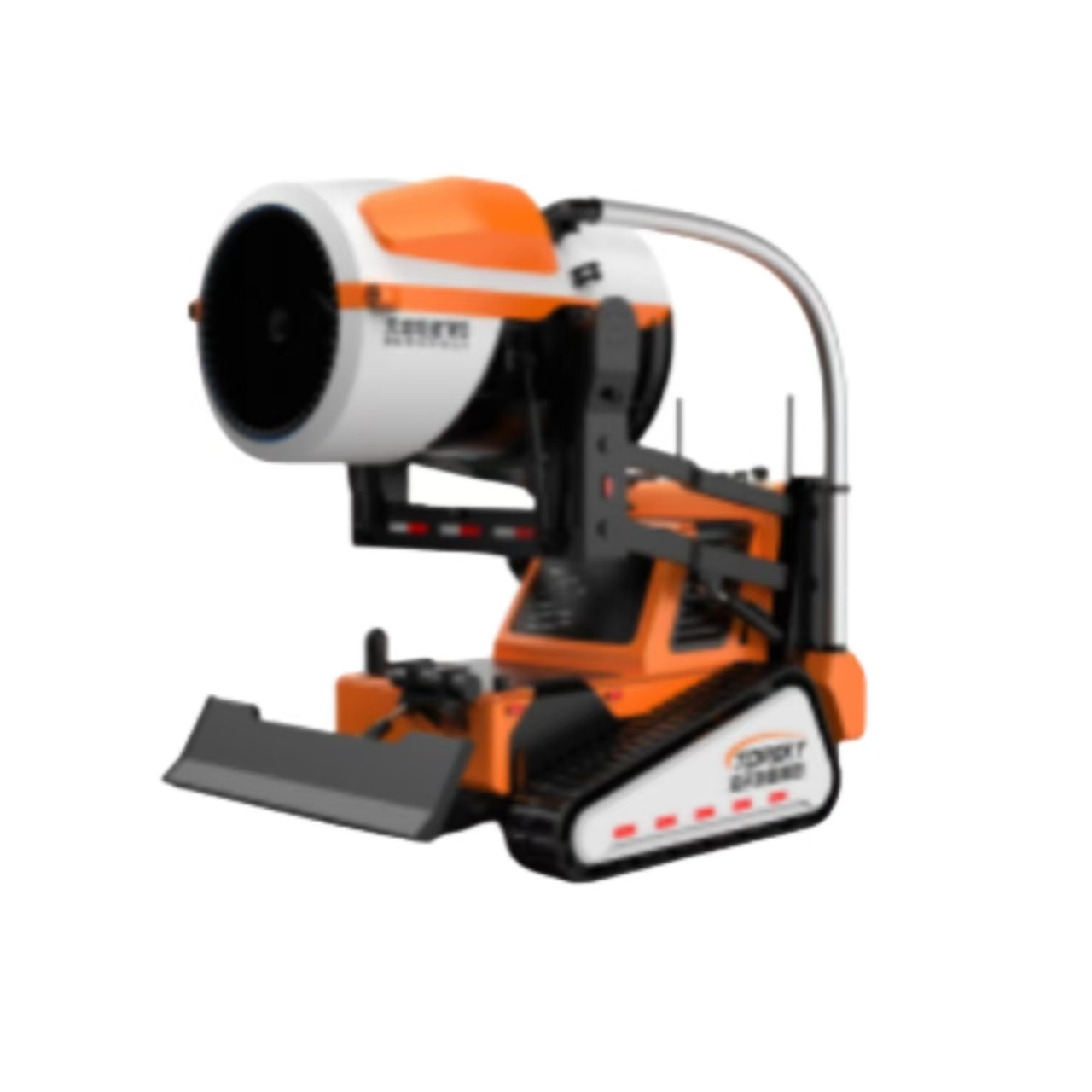

Remote Control All Terrain Firefighting Robot with 4G Wireless Transmission for Smoke Exhaust and Fire Extinguishing

Product Description

• Product Overview
• The fire-fighting and smoke-exhausting robot, as a kind of special robot, uses a diesel engine as its power source and employs remote control for long-distance operation of the fire-fighting robot. It can be used in various large petrochemical enterprises, tunnels, subways, and other with increasing risks of oil and gas leaks, toxic gas explosions, tunnel, and subway collapses. The fire-fighting robot plays a crucial role in emergency rescue operations mainly replacing firefighters in rescuing at dangerous fire scenes or smoke-filled fire scenes
• Product Features
• Large exhaust air volume of the fog cannon
•  Detection of multiple gas environmental parameters
• 4G wireless transmission system, which can synchronously transmit video and environmental monitoring data to the command center via network, achieving a "trinity" fire command system.
• Technical parameters
• Adopt ATV hydraulic rubber tracked chassis
•  Traction force: 35KN
• Dragging distance: ≥ 100m (dragging four DN80 full water hoses)
•  Travel speed: ≥ 1.2/s, remote control with stepless speed adjustment
• Climbing ability: ≥ 62%
• Pushing force of the shovel: ≥ 35KN
• Shovel pitch angle: Pitch angle ≤ 0°, Pitch angle ≥ 30°
•  Continuous travel time: ≥ 2.5h
• Range of operation: ≥ 6h
• Remote control distance: 1. 1km (visible distance, affected by the actual environment)
• Control method: Wireless remote control
• Obstacle clearance ability: 230mm obstacles; can adapt to grassland, sandy land, snow land, gravel, mudflat and other environments
•  Water depth: Up to 460mm
•  Straight running deviation: < 6%
• Lifting height: 4700mm
