High temperature fire fighting robot

Place of Origin:	CHINA	Brand Name:	TOPSKY

Detail Information
Headlights:	5W*4	Flow Rate:	80.7L/s Water
Straight Deviation Amount:	≤ 2%	Water Flowrate:	157.2L/s
Wading Depth:	460mm	Towing Distance:	80m
Safety Features:	Emergency Stop Button, Heat Insulation, And Fail-safe Shutdown	Flow:	80.7L/S Water
Maximum Takeoff Weight:	320kg	Working Time:	4h
Maximum Payload:	100kg	Light Source Type:	Blue Laser Light; Purple Laser Light
Gradeability:	85%	Dozer Thrust:	≥10000N
Drag Distance:	: ≥60m (drag 3 DN80 Filling Hoses)
Highlight:	high temperature fire fighting robot , fire fighting robot with warranty , industrial fire fighting robot

Product Description

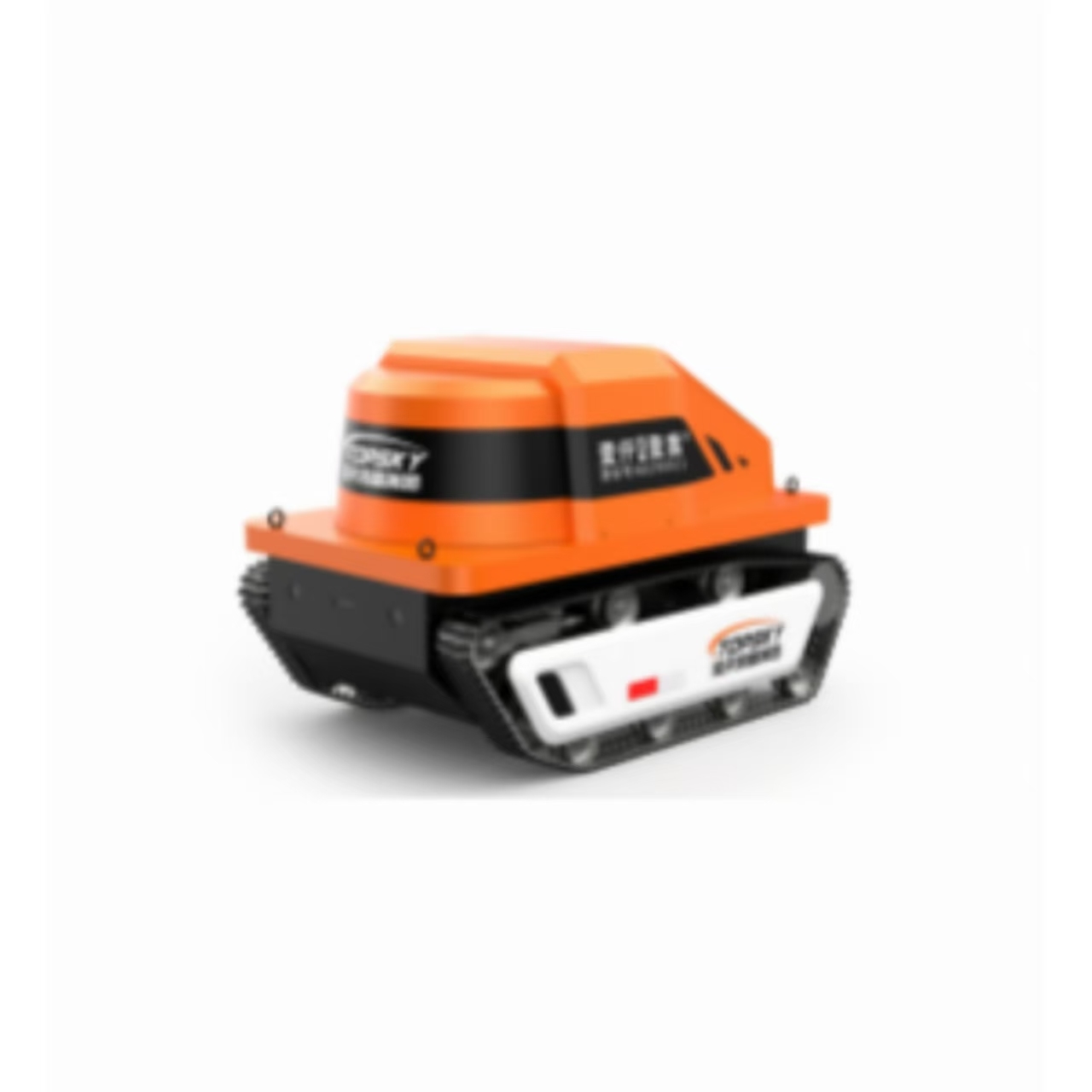

High Temperature Fire Fighting Robot

The anti-high temperature fire extinguishing robot is a specialized robotic system powered by lithium batteries and controlled via wireless remote operation. Designed for extreme firefighting scenarios, this advanced robot delivers exceptional performance in high-temperature environments.

Key Features & Capabilities

Extreme temperature resistance: operates at maximum 1100°C for 30 minutes
High protection rating: IP65 certified for dust and water resistance
Versatile operation: effectively performs in various environmental conditions
Comprehensive gas detection: monitors up to 14 toxic/harmful gases and 2 environmental parameters
Long-range control: 1000m remote operation and audio/video transmission in open environments
Dual-function operation: fire-extinguishing and flood-draining capabilities
Automatic water/drainage following with remote water supply
Maximum drainage flow rate: ≥ 93 m³/h
4G wireless transmission for real-time video and environmental data to command centers
Integrated "trinity" fire command system

Technical Specifications

Parameter	Specification
Chassis Type	ATV hydraulic rubber tracked chassis
Traction Force	35KN
Dragging Distance	≥ 100m (dragging four DN80 full water hoses)
Travel Speed	≥ 1.2 m/s with stepless speed adjustment
Climbing Ability	≥ 62%
Shovel Pushing Force	≥ 35KN
Shovel Pitch Angle	Pitch angle ≤ 0° to ≥ 30°
Continuous Travel Time	≥ 2.5 hours
Operation Range	≥ 6 hours
Remote Control Distance	1 km (visible distance, environment dependent)
Control Method	Wireless remote control
Obstacle Clearance	230mm obstacles; adaptable to grassland, sand, snow, gravel, and mudflat environments
Water Depth Capability	Up to 460mm
Straight Running Deviation	< 6%
Lifting Height	4700mm

This high-temperature fire fighting robot represents cutting-edge technology in emergency response equipment, combining robust construction with advanced remote operation capabilities for maximum safety and effectiveness in hazardous environments.
