Product Description

An anti surveillance equipment high-tech small multi-rotor aerial aircraft

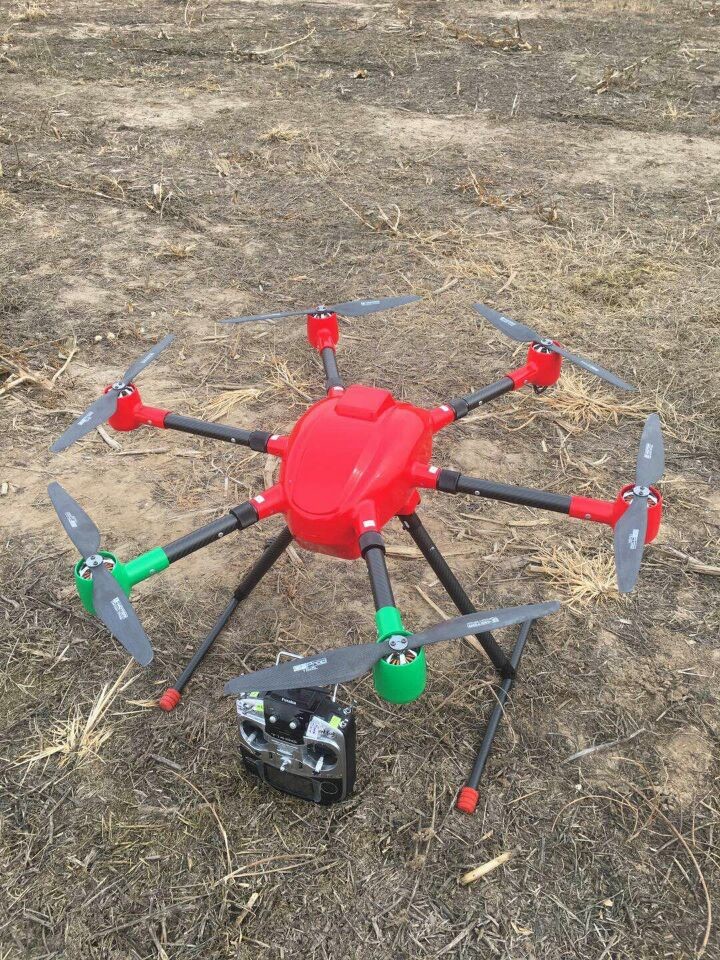

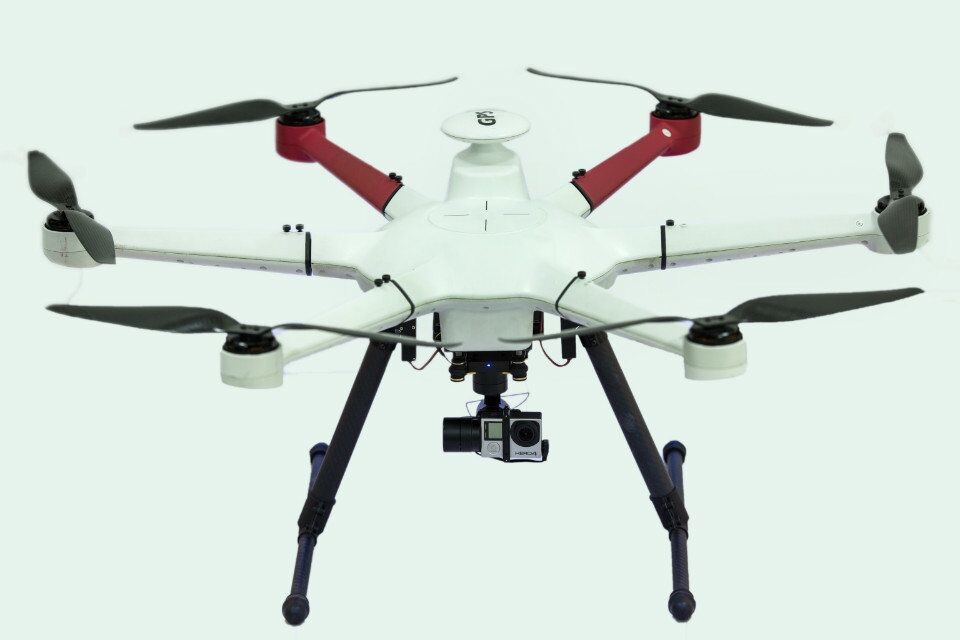

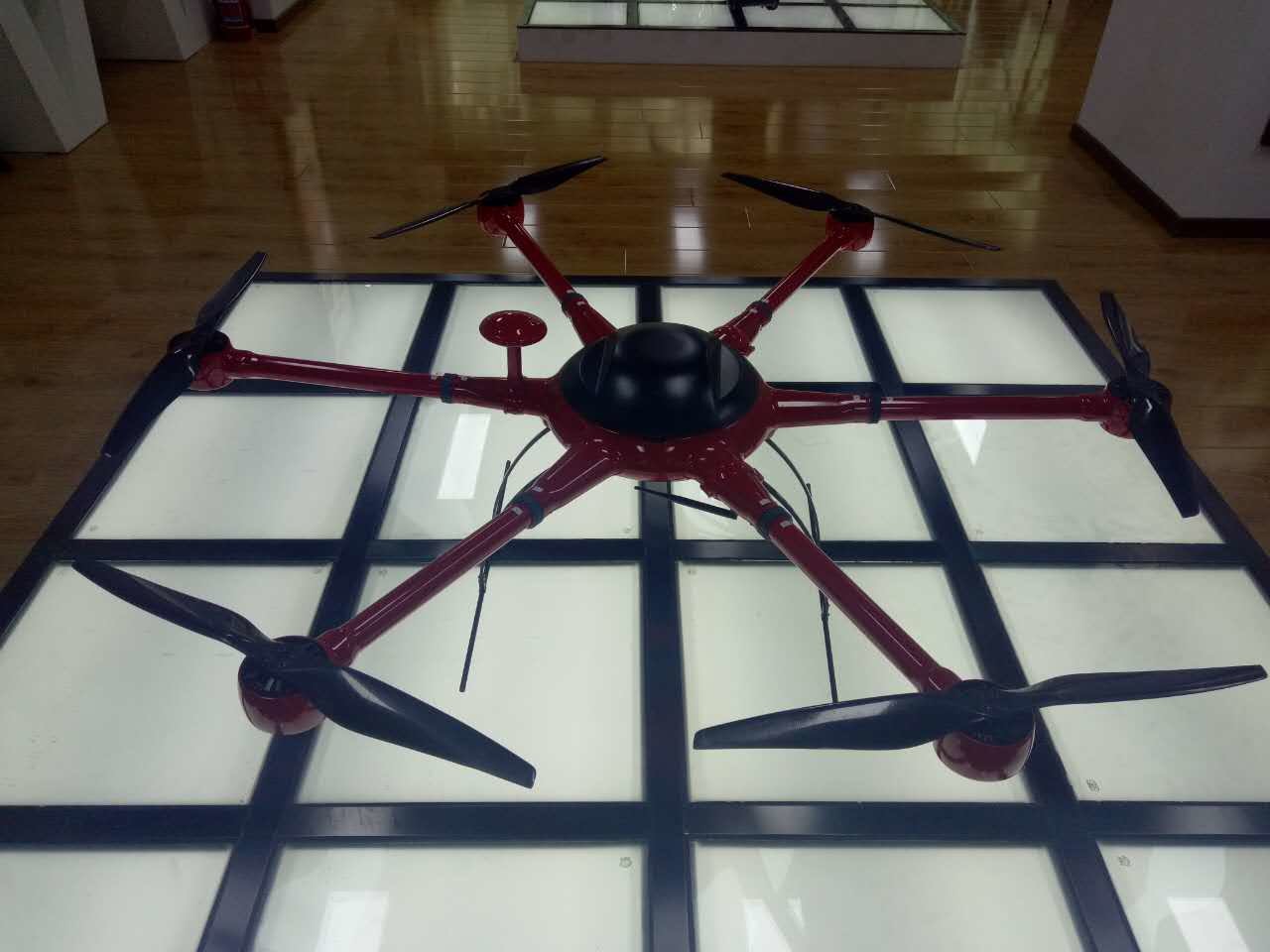

TS380 + multi-rotor UAV is a high-tech small multi-rotor aerial aircraft. Equipped with high-precision three-axis stability PTZ, 14 million pixel aerial camera and advanced intelligent flight control system. Intelligent mobile display device can achieve long-range remote control camera, real-time transmission of video images, ground station automatic flight, FPV flight and other functions.

Multi-rotor unmanned aerial vehicles can be used to perform reconnaissance, surveillance, search, coordination of command, communication, air drop and other air missions. Has a greater task load, stronger wind resistance, longer life time, attitude control, is currently the hover control precision multi-rotor unmanned aircraft system.

Second, the application of places

Aerial reconnaissance

L power line inspection, cable;

Aerial mapping;

L forest fire patrol.

Third, the product features

L Radar lock & automatic return

Radar lock: your phone real-time display of the aircraft's orientation and flight parameters;

Automatic return: your aircraft in the remote control distance can also automatically return to the starting point and automatically landed, remove your worries;

L high-performance aerial camera, support 14 megapixel static photo shoot, support 4K 30 frames, 1080P 120 frames video, equipped with FOV140 °, F / 2.8 lens;

L Flight parameters are displayed on the handheld terminal screen in real time, allowing you to control the flight status at any time;

L three-axis gyro stable PTZ can take the initiative to offset the camera's jitter, so that your multi-rotor unmanned aerial vehicles as the motionless air tripod, to help you shoot a stunning aerial picture;

L new GPS transmission program, you can wireless distance of 3000 meters;

L provide out of control protection, low power automatic return function;

Fourth, the product profile

TS380 + multi-rotor UAV by the aircraft, camera, PTZ, power system, flight control system, remote control system, GPS communications equipment. The flight control system is built into the aircraft fuselage. Remote communication system communication frequency of 5.8GHz, the receiver built into the aircraft body. Aircraft built-in GPS module for video image transmission.

Fifth, the main technical indicators

Aircraft

The following are the same as the "

Body size: Expanded diameter (diagonal paddle diameter): <1600mm,

Climb rate:> 7m / s

Cruising speed:> 12m / s

Flight distance: ≥ 3000m

Relative flight height: ≥ 2000m

Body weight (including battery and paddle): ≤ 2000g

Maximum mission load: ≥ 3000g

Maximum blanking time: ≥50 minutes for no load, ≥ 40 minutes for 500g task load

Wind resistance: ≥ 12m / s

Security function: a key return, lost signal automatically return

PTZ

The following are the same as the "

Working current: static: 750mA; dynamic: 900mA

Angle control accuracy: ± 0.03 °

Controlled rotation range: pitch: -90 ° -0 °

Control speed: pitch: 90 ° / s

camera

The following are the same as the "

Working environment temperature: 0 ℃ -40 ℃

Sensor Size: 1 / 2.3 "

Effective pixels: 14 million

Maximum resolution: 4384 × 3288

HD recording: 4K 30 frames and 1080P 120 frames

Video FOV: 2nd gear adjustable (110 ° / 85 °)

remote control

The following are the same as the "

Operating frequency: 5.728GHz-5.85GHz

Communication distance (open outdoor): 3000m

Receiver sensitivity (1% PER): - 93dBm

Equivalent omnidirectional radiated power (EIRP): 100 mw

Operating current / voltage: 120 mA @ 12V

Biography

The following are the same as the "

Operating frequency: 2.4GHz

Communication distance (open outdoor): 3000m

Effective omnidirectional radiated power (EIRP): 100 mW

Receiving sensitivity (1% PER): -101dBm ± 2dBm

Antenna gain: 2.0 ± 0.7dBi@2450MHz

LED display

The following are the same as the "

Features:

7 inch LED screen display

Real - time image transmission and FPV

Flight remote control camera and parameter setting
