Product Description

Overview

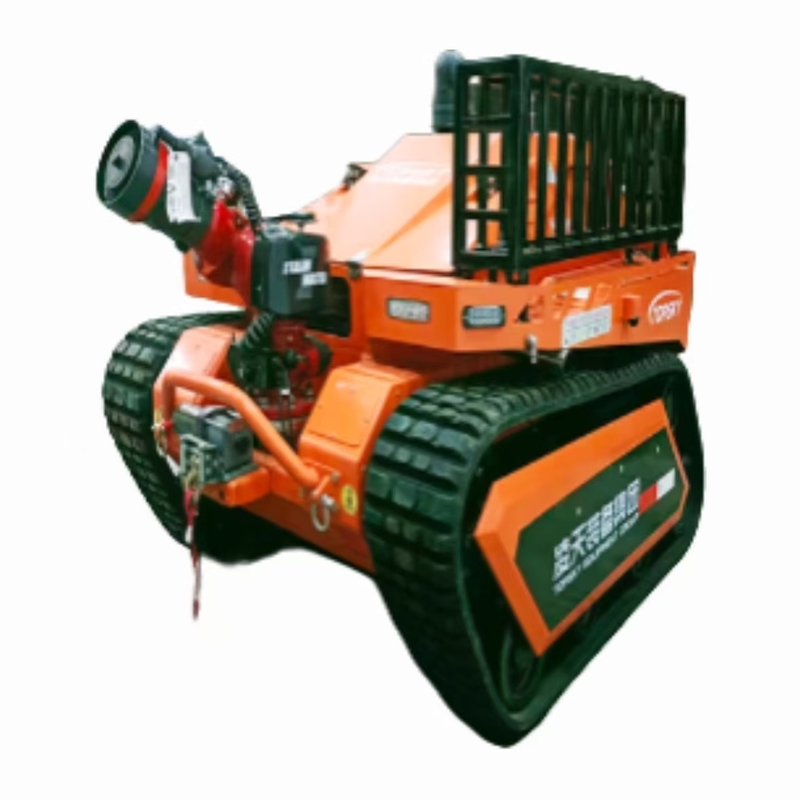

The RXR-M120D is a wheeled medium-sized oil-powered fire-fighting and extinguishing robot. It is powered by a diesel engine and driven by a closed hydraulic system through the ASV rubber tracks for high-speed movement. It is equipped with a fire cannon with a flow rate of 120 liters per second. It is also equipped with various detection and monitoring sensor devices and can carry a 120-meter-long DN80 or DN65 fire hose. It can conduct remote real-time monitoring of the fire scene and extinguish the fire.
This product features remote control, panoramic display functions, and also has excellent off-road performance; the integrated hydraulic braking system can effectively stop the vehicle and prevent the entire machine from sliding.

Scope of application

Rescue operations for large-scale fires in petroleum and chemical enterprises:

Places prone to collapse, such as tunnels and subways, require entry for firefighting and rescue.

Rescue operations in environments with potential explosive gas or liquid leaks.

 Rescue operations in environments with thick smoke or toxic gases.

Firefighting and rescue operations in close proximity, where personnel are at risk of injury.

Feaures

High traffic volume, long range
The spray flow rate of the fire cannon can reach 120L/s, and the water range is over 95 meters, while the foam range is over 90 meters.
2. High traction
The crawler moves by being driven by a hydraulic motor. The power of the diesel engine is approximately 30KW, and the horizontal traction force can reach 8KN.
3. High-integration Detection
It can measure 14 types of gases, temperature, humidity, CO2, CH4, CO, H2S, O2, H2, NH3, Cl2, SO2, NO2, C3H8 (propane), C2H4O (acetaldehyde), C2H2 (acetylene), and VOC (optional).
4. High Speed
Linear walking speed is greater than 3.6 meters per second, and it supports remote control with stepless speed adjustment.
5. High mobility
Suitable for various road conditions, the obstacle-crossing height can reach 300mm; the climbing angle can reach 25° (46.6%)
6. Advanced Intelligence Function (4 major functions as optional upgrade)
With voice control; two-way voice communication; redundant communication; access to the robot networked cloud platform and other multiple intelligent functions.
7. Cloud Platform (Optional)
By connecting to the robot networked cloud platform, one can remotely monitor equipment information, gas and video information, conduct statistical analysis, automatically verify the validity period of the equipment, automatically remind of the statistics of expired equipment information, and carry out comprehensive management applications to ensure the timeliness of the equipment.
8. Multiple hydraulic output power interface (optional)
Reserved hydraulic output interface, with a pressure of 16 MPa and a flow rate of up to 25 L/min. It meets the requirements of hydraulic tools and equipment such as hydraulic demolition tools, hydraulic generators, hydraulic high-pressure water pumps, and hydraulic welding machines.

Technical parameters:

Wide applicability
2.  Strong adaptability
3. Powerful performance
4. Rapid Implementation
5. Fully Automated
Company Introduction

Beijing Topsky Intelligent equipment Group Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.
Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of 1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.
Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals, and armed  in many fields. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.
    So far, many products have been exported to more than 10 countries.
