200W Small Tracked Robot Chassis with 12h Working Time

Contact Now

200W Small Tracked Robot Chassis with 12h Working Time

Place of Origin:	china	Brand Name:	topsky

Detail Information
Rated Power:	200w	Measurement Time:	≤2 Seconds
Response Time:	Less Than 1s	Insert:	Du-Pont Kevlar Multi Layer
Remote Distance:	5m	Gas Flow Rate:	1.0L Or Set According To Customer Needs
Shrapnel Weight:	2.3kg	Maximum Speed:	2m/s
Working Time:	12 Hours	Warming Up Time:	Less Than 12minutes
Break Locks:	8	Continuous Walking Time:	2h
The Pixel Size:	: Approx 160 μm.	Battery Working Time:	>120 Minutes
Suit:	600 M/s (without Armored Blast Plates)
Highlight:	200W tracked robot chassis , small counter terrorism robot , 12h working time robot

Product Description

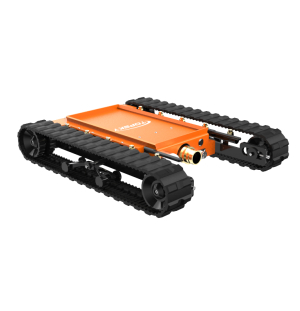

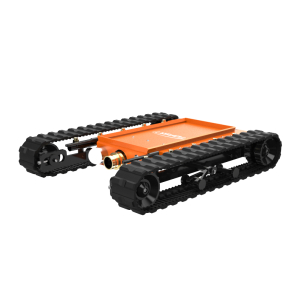

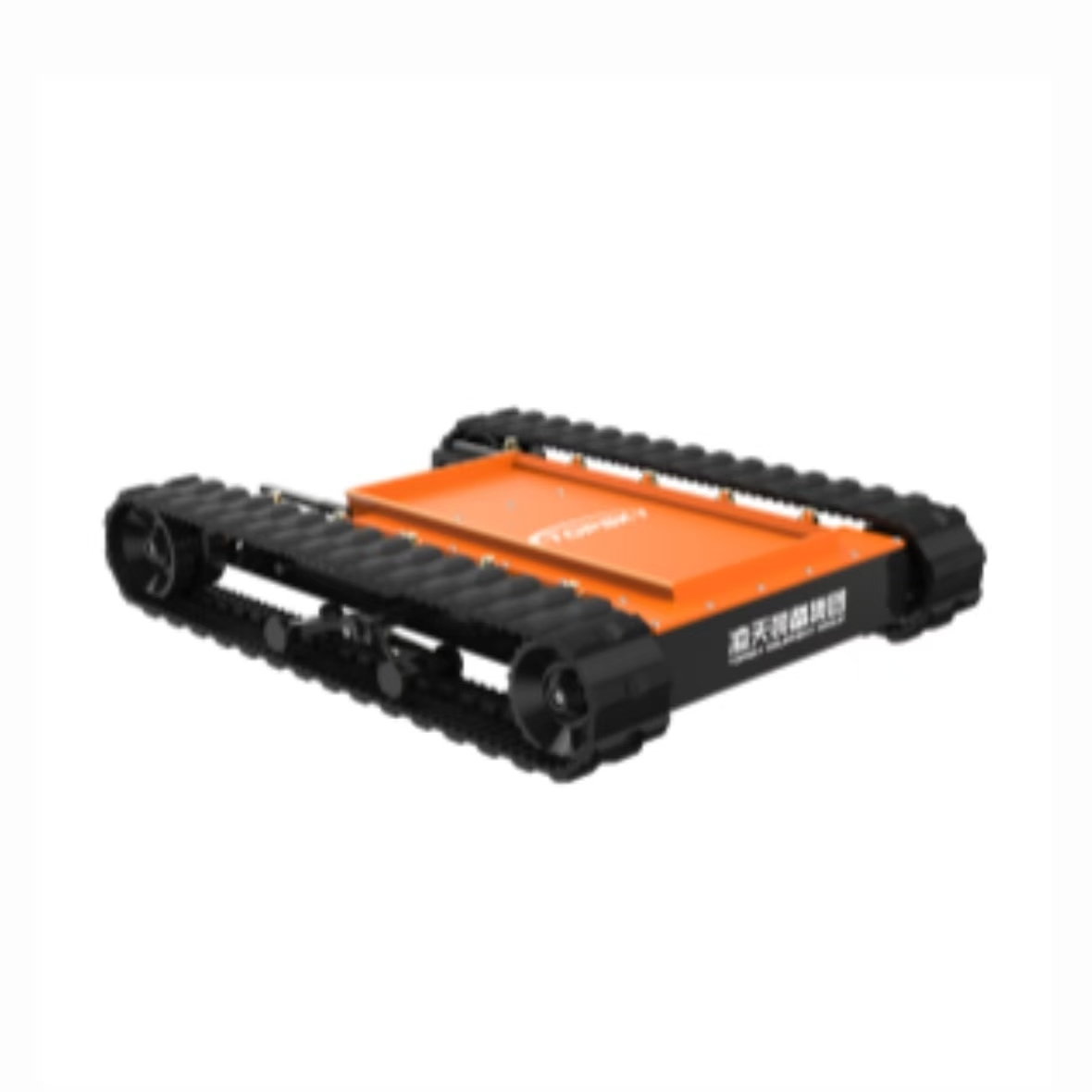

Small Tracked Robot Chassis

Overview

This lithium battery-powered small tracked robot chassis features wireless remote control operation with in-situ rotation for maximum maneuverability. Designed for inspection and firefighting operations, it comes with standard explosion-proof connectors and supports various modular attachments for custom configurations.

Key Features

Auto-follow: Tracks vehicles or personnel at speeds up to ≥13.8km/h with active obstacle avoidance
All-terrain mobility: Six-wheel independent suspension handles mountains, forests, steep slopes (≥35°), and trenches
Multi-role capability: Transports rescue equipment, extends with sensors (audio/gas/visual), and serves as evacuation stretcher
Extended operation: Optional range extender generator for prolonged missions
Network integration: GPS/Beidou positioning with real-time data transmission to command centers

Technical Specifications

Parameter	Value
Standards Compliance	GA 892.1-2010 Fire Robots Standard
Protection Rating	IP65
Power System	≥360Wh Lithium Battery
Dimensions (L×W×H)	≤650 × 500 × 118mm (excluding attachments)
Motor System	≥1.6KW DC Servo Motors
Steering	Differential In-Place Steering
Weight	≤25kg
Payload Capacity	≥50kg (flat surface)
Maximum Speed	≥1.0m/s (variable)
Gradeability	≥70% slope (35° incline)
Obstacle Clearance	50mm
Track Width	≥80mm
Construction	Alloy steel/carbon steel/aluminum frame with baked paint finish
Optional Features	Flame-retardant tracks with metal skeleton and derailment protection
