ROV 3.0 Underwater Robot with 150m Depth Capability, 6-DOF Omnidirectional Movement and Modular Functional Attachments
ROV 3.0 Underwater Robot with 150m Depth Capability, 6-DOF Omnidirectional Movement and Modular Functional Attachments ROV 3.0 Underwater Robot with 150m Depth Capability, 6-DOF Omnidirectional Movement and Modular Functional Attachments ROV 3.0 Underwater Robot with 150m Depth Capability, 6-DOF Omnidirectional Movement and Modular Functional Attachments ROV 3.0 Underwater Robot with 150m Depth Capability, 6-DOF Omnidirectional Movement and Modular Functional Attachments ROV 3.0 Underwater Robot with 150m Depth Capability, 6-DOF Omnidirectional Movement and Modular Functional Attachments
Contact Now

ROV 3.0 Underwater Robot with 150m Depth Capability, 6-DOF Omnidirectional Movement and Modular Functional Attachments

Place of Origin: CHINA Brand Name: TOPSKY

Detail Information
Protection Level: From NIJ IIA To NIJ IIIA Life: 100 Shootings
Power Pack: 12V DC Working Time: ≥2h
Control Unit: :0.69 KG Net Weight: 11kg
Degree Of Protection: Public Security Grade Two Detection Range: 0-1000 Meters
Alarm Response Time: ≤ 1s Film Size: 32x22CM(Usually)
Response Time: Less Than 1s Panel Material: Aramid UD Fabric (Kevlar)
Material: High-grade Steel, Kevlar, Ballistic Fibers Portability: Designed For Easy Transport And Rapid Deployment
Duration For Analysis: ≤4seconds
Highlight:

150m Depth Capability Underwater Robot

,

6-DOF Omnidirectional Movement ROV

,

Modular Functional Attachments Remotely Operated Vehicle

Product Description

ROV 3.0 Underwater Robot
The ROV 3.0 underwater robot utilizes shore-based power supply for extended high-power operation. It communicates with ground stations via wireless remote control and supports customizable complex operation modes. The main control unit provides serial ports and standard CAN bus communication interfaces, enabling rapid underwater movement with six-dimensional omnidirectional capabilities for comprehensive observation and navigation.
Key Features
Fast Movement Capability
  • High-speed operation for efficient search and rescue missions
  • Six-degree-of-freedom omnidirectional movement with flexible control
Video Investigation System
  • Front-mounted pan-tilt underwater camera with wide-angle rotation
  • Large positive and negative rotation angles for comprehensive underwater viewing
Search and Rescue Operations
  • Rapid deployment to deep-water areas and inaccessible locations
  • Modular design supports various functional attachments for professional rescue support
Expansion Interfaces
  • Underwater mechanical arm compatibility
  • Auxiliary camera, underwater sonar, and laser ruler support
Intelligent Control Systems
  • Automatic depth stabilization and hovering
  • Automatic directional navigation and constant speed cruise control
Technical Specifications
Weight 15.5 kg (without attached equipment)
Maximum Speed 1.5 m/s
Operating Depth 100m (maximum submersion: 150m)
Propulsion System 6 units, thrust ≥ 7 kg each
Lighting 2 units, 2200LM
Pan-tilt Camera Internally installed, ±60° rotation, 1080P resolution, 110° wide angle, 200W effective pixels, 4x optical zoom
Sensors 9-axis attitude sensor, depth sensor, electronic compass, temperature sensor, humidity sensor
Operating Temperature -20°C to 65°C
Power Supply Shore AC 220V via umbilical cable
Expansion Support Two-function mechanical arm (grasping + cutting), sonar, multi-parameter water quality sensor, USBL
All parameters certified by Wuhan Ship Life Saving Equipment Quality Inspection and Testing Center

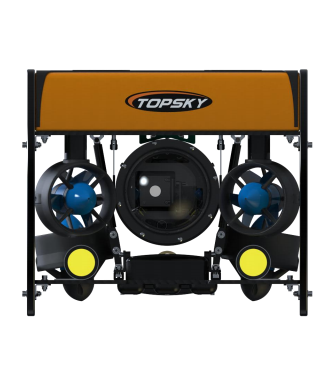

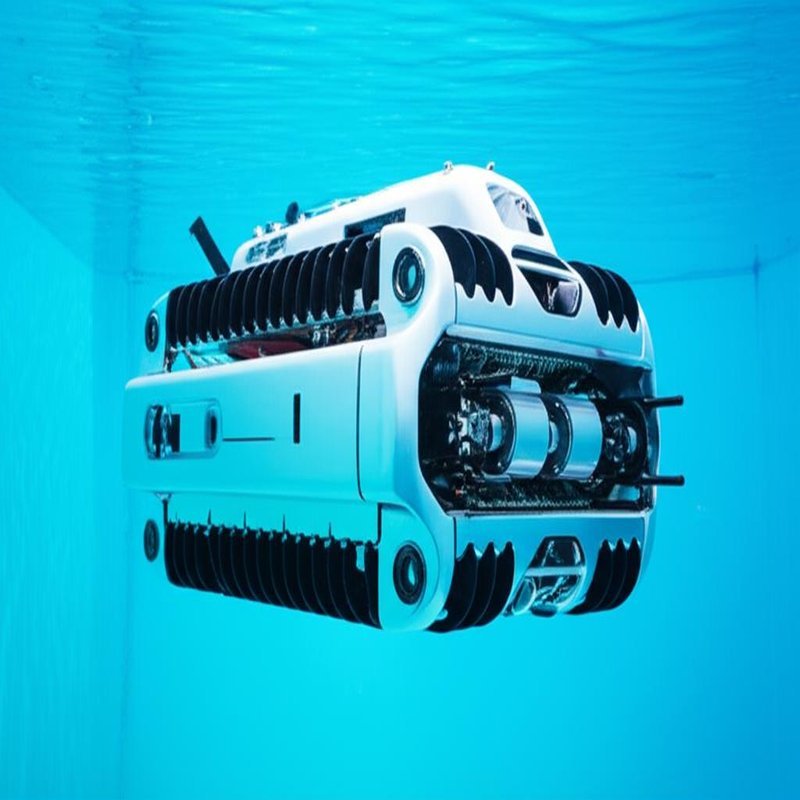

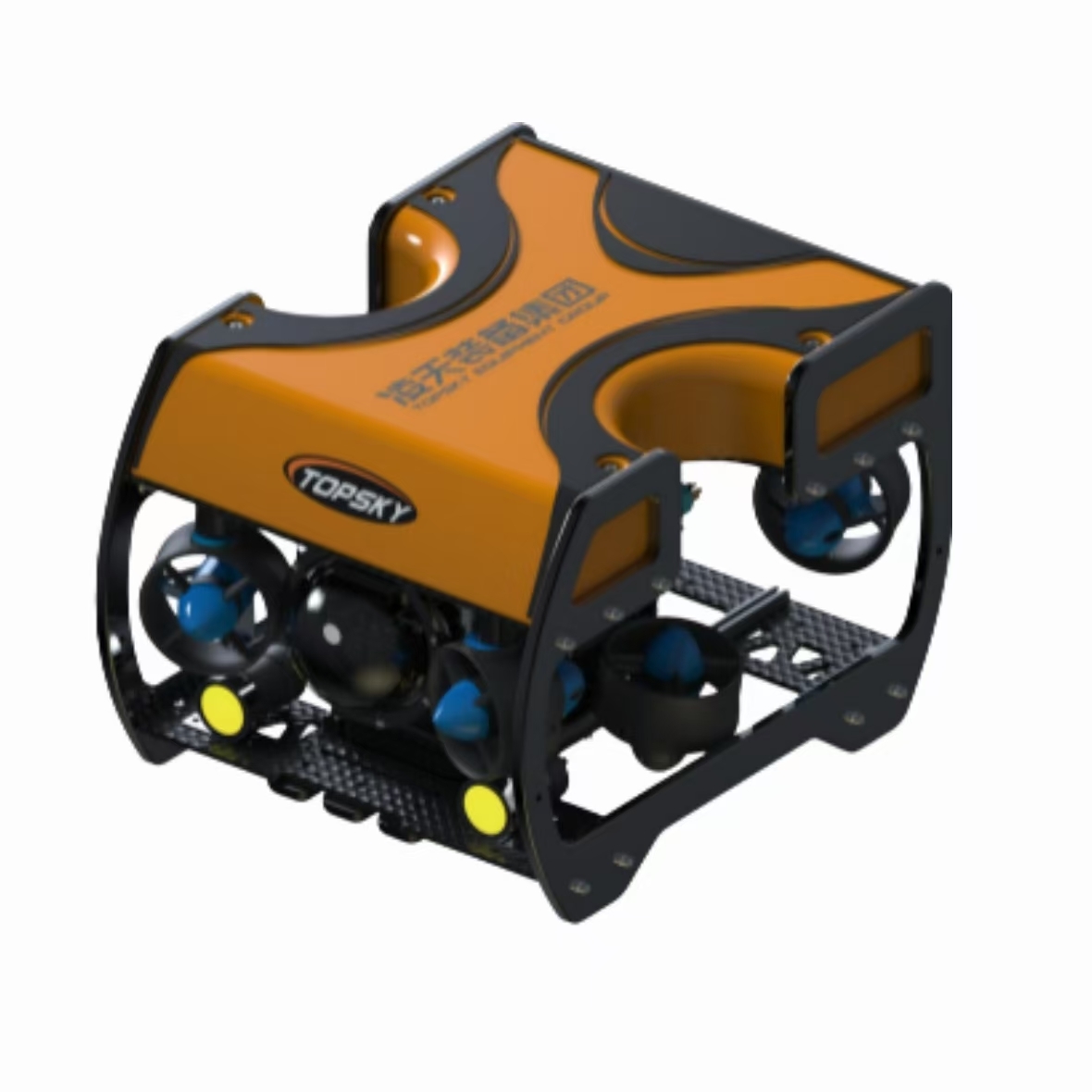

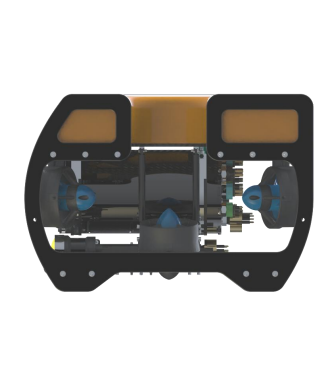

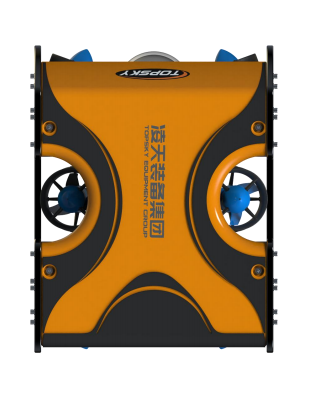

Product Images
ROV 3.0 Underwater Robot with 150m Depth Capability, 6-DOF Omnidirectional Movement and Modular Functional Attachments 0 ROV 3.0 Underwater Robot with 150m Depth Capability, 6-DOF Omnidirectional Movement and Modular Functional Attachments 1 ROV 3.0 Underwater Robot with 150m Depth Capability, 6-DOF Omnidirectional Movement and Modular Functional Attachments 2 ROV 3.0 Underwater Robot with 150m Depth Capability, 6-DOF Omnidirectional Movement and Modular Functional Attachments 3
